Power Distribution Center Relay Cavities & Circuits Identification

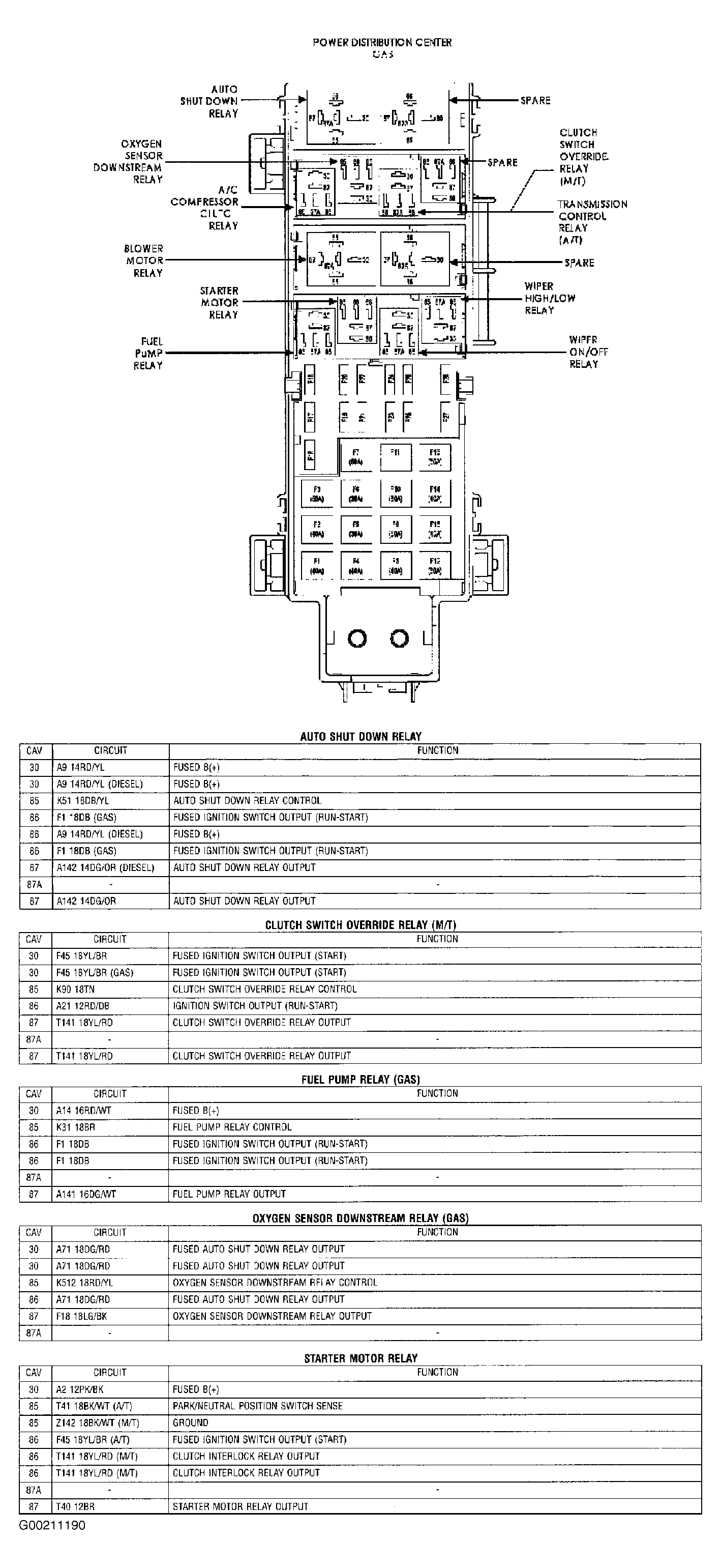

Fig 1: Identifying Power Distribution Center Relay Cavities & Circuits

G00211190

Courtesy of CHRYSLER CORP.
