Generator Harness Connector End View

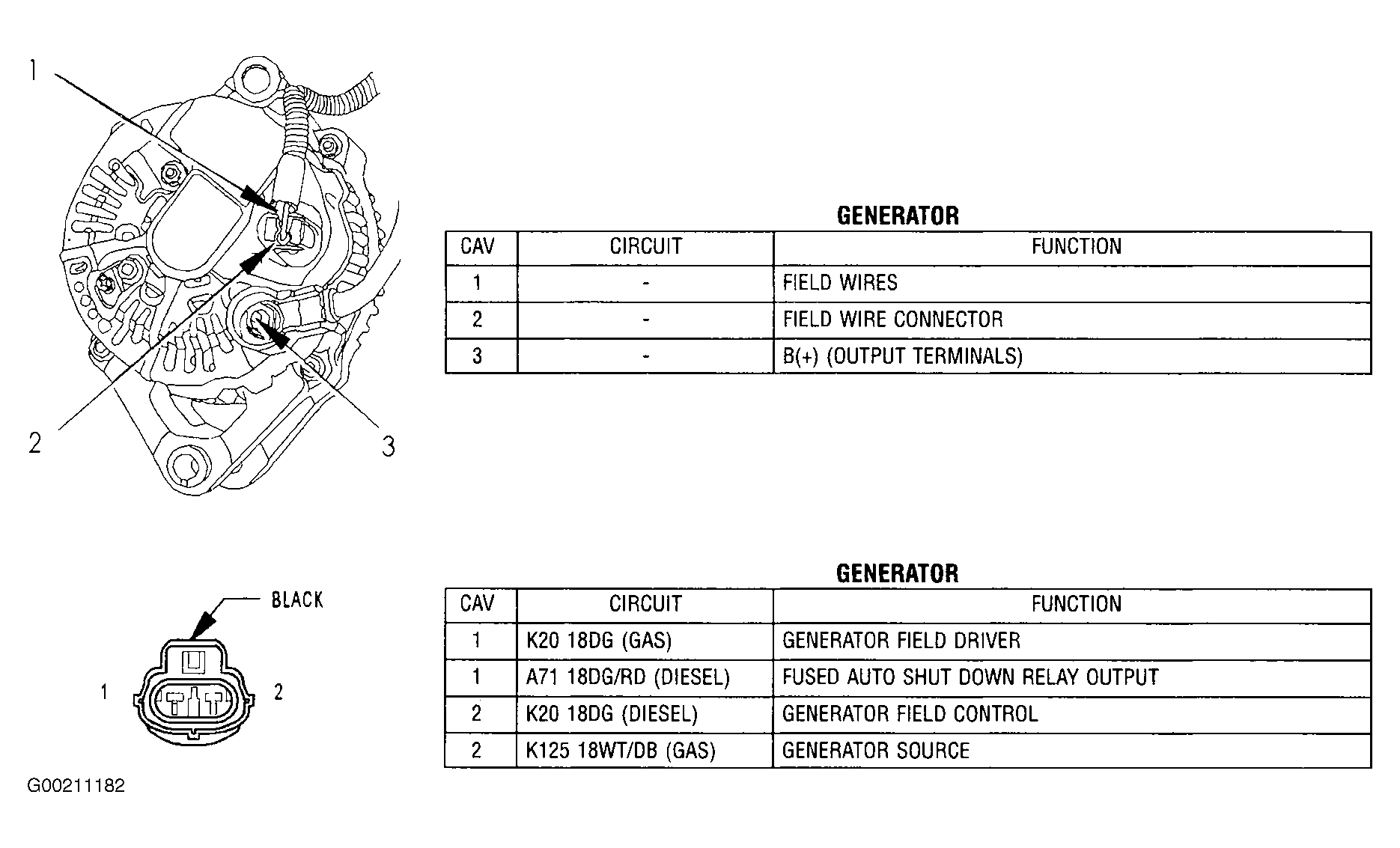

Fig 1: Identifying Generator Harness Connector

G00211182

Courtesy of CHRYSLER CORP.
