Power Window Master Switch (Midline/Highline) Connector End View
Power Window Master Switch (Midline/Highline) Connector End View

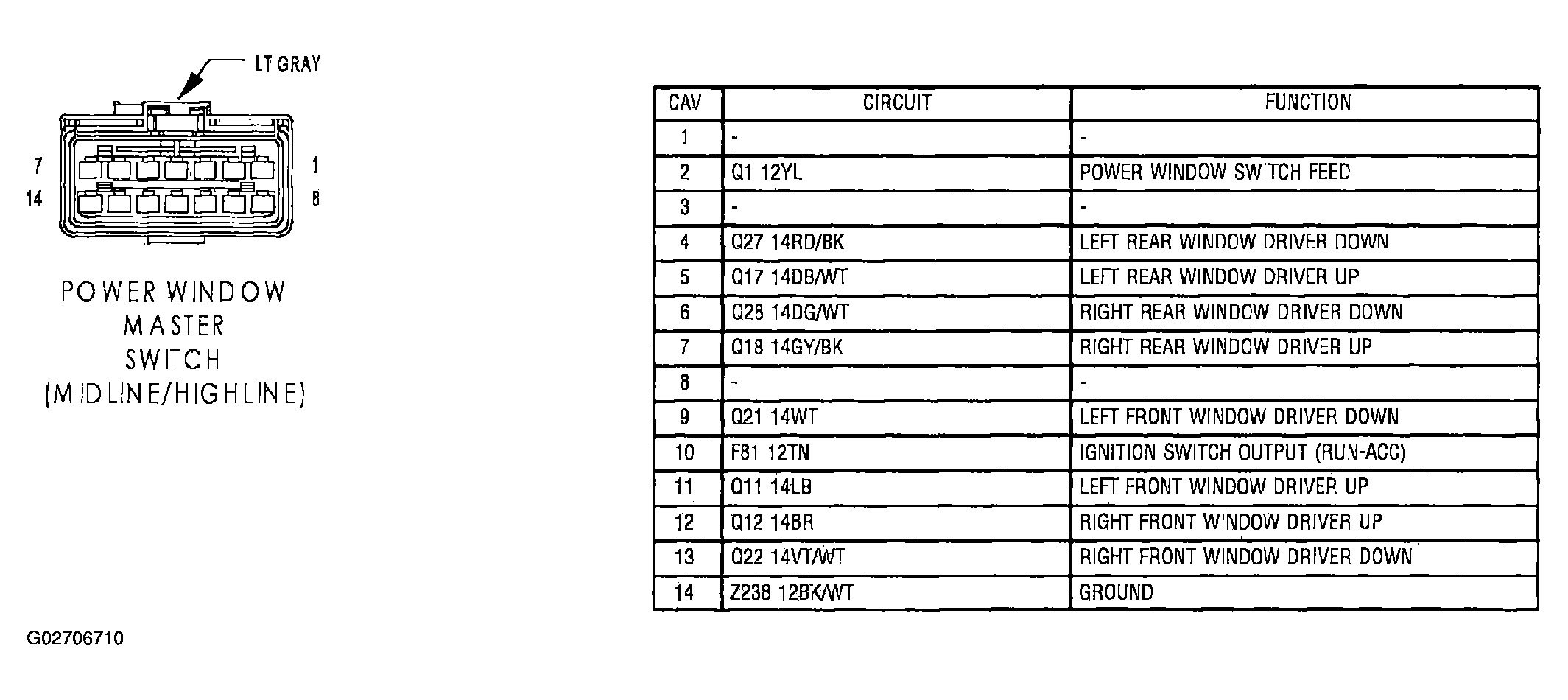

Fig 1: Power Window Master Switch (Midline/Highline) Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
