Line Pressure Sensor (45RFE) Connector End View

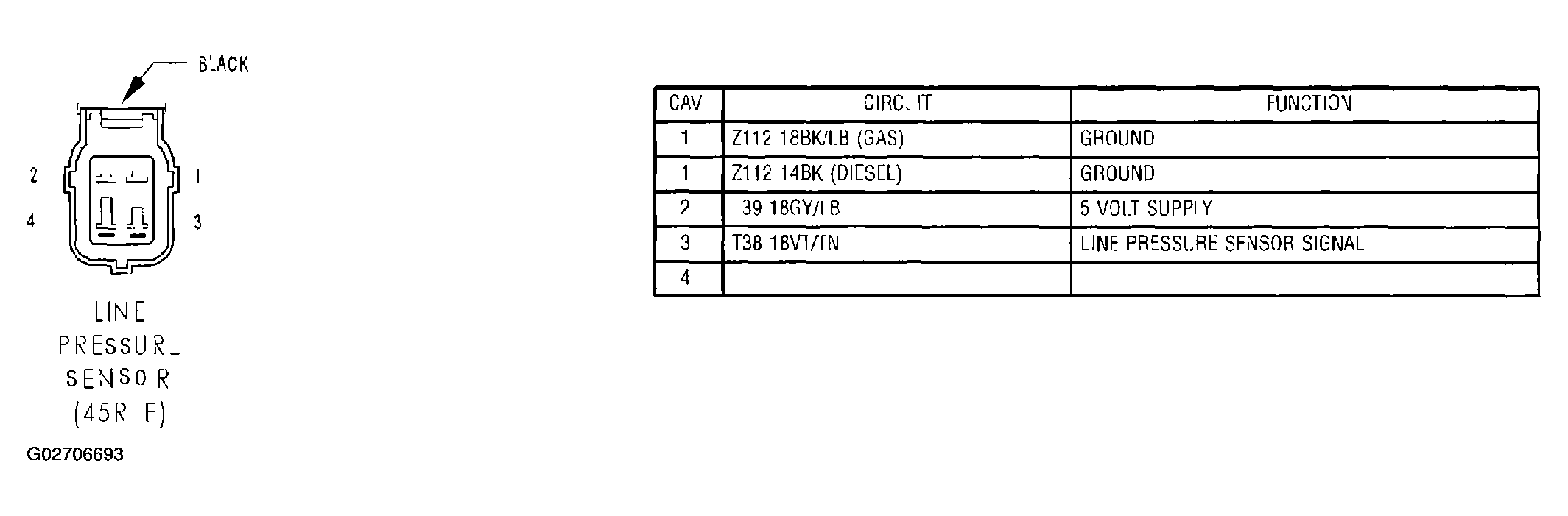

Fig 1: Line Pressure Sensor (45RFE) Connector End View

G02706693

Courtesy of DAIMLERCHRYSLER CORP.
