Left Courtesy Lamp Connector End View

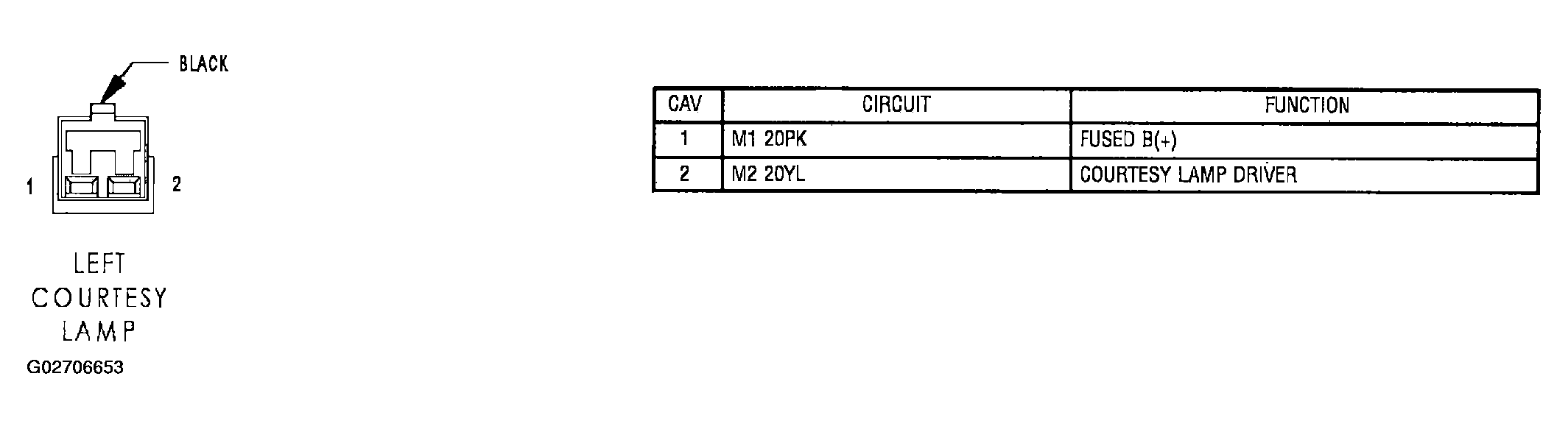

Fig 1: Left Courtesy Lamp Connector End View

G02706653

Courtesy of DAIMLERCHRYSLER CORP.
