Heated Seat Module (Highline) Connector End View

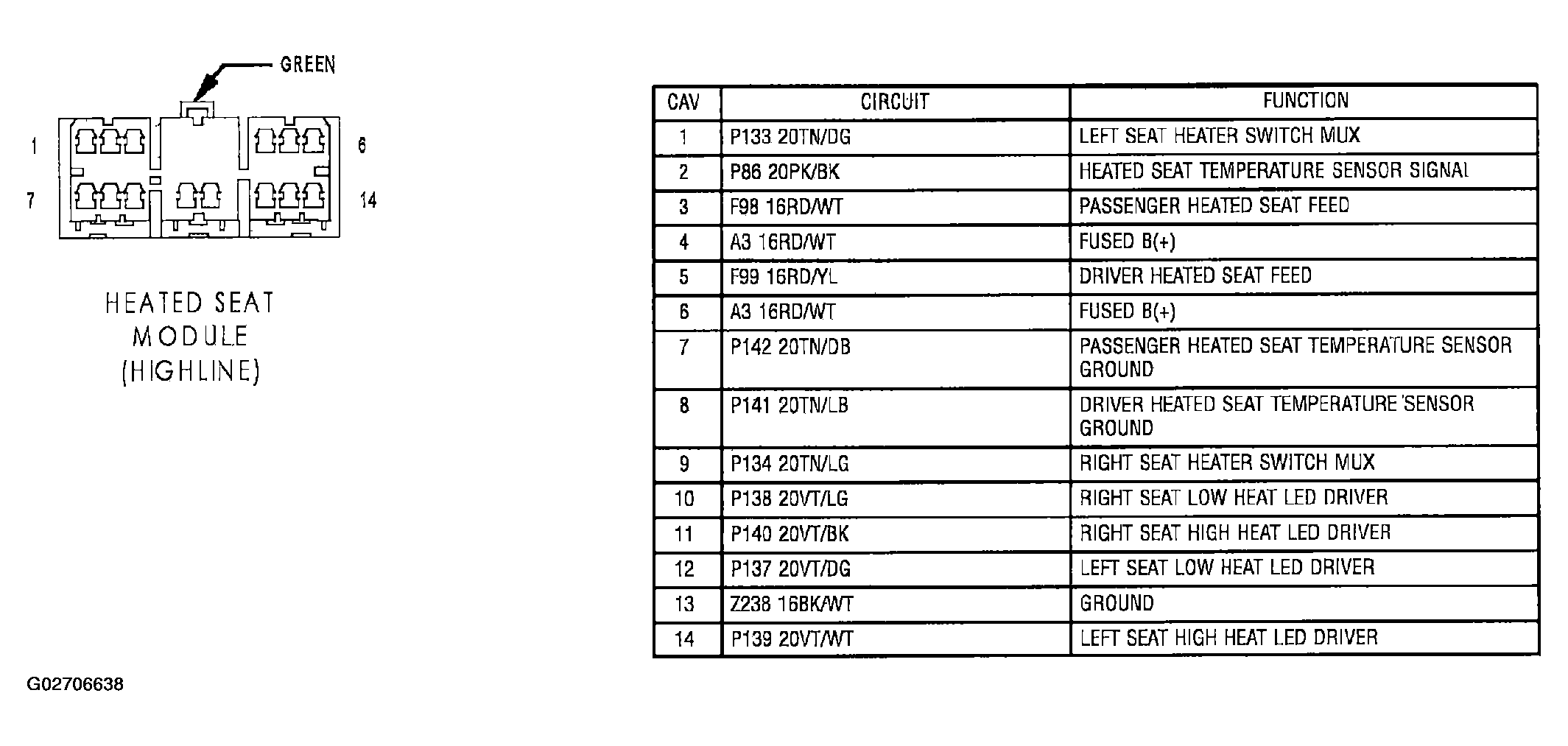

Fig 1: Heated Seat Module (Highline) Connector End View

G02706638

Courtesy of DAIMLERCHRYSLER CORP.
