Front Wiper Motor Connector End View

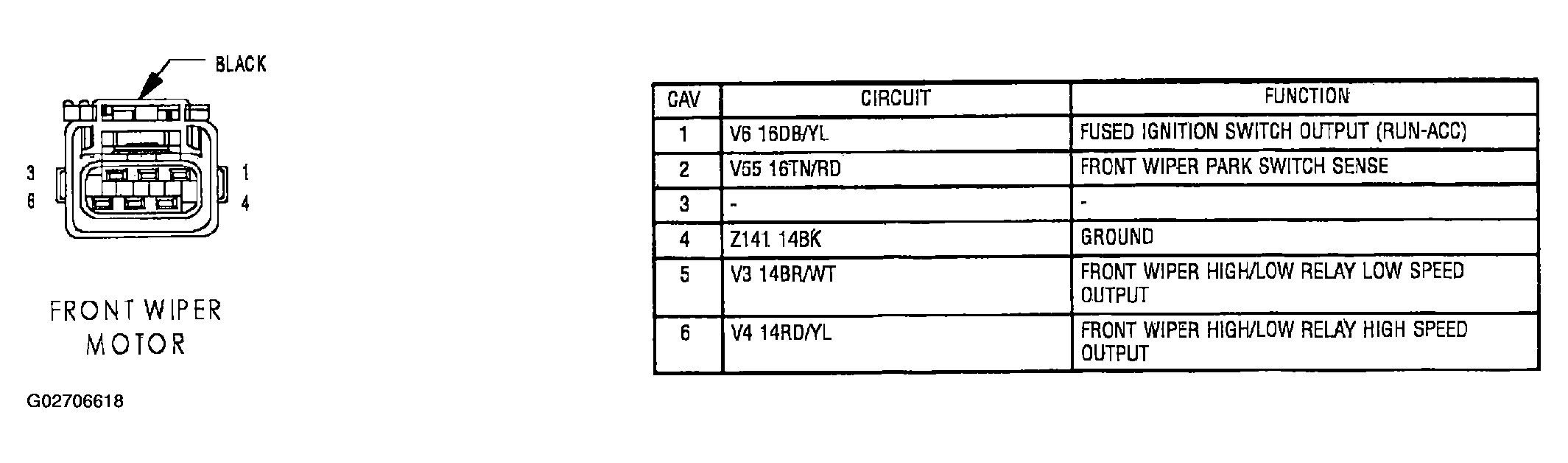

Fig 1: Front Wiper Motor Connector End View

G02706618

Courtesy of DAIMLERCHRYSLER CORP.
