Module Lamp Replacement

  1. Remove the overhead console.
  2. Using a flat blade screwdriver twist out socket/lamp (Fig 1 ).
  3. Replace lamp(s) as necessary.

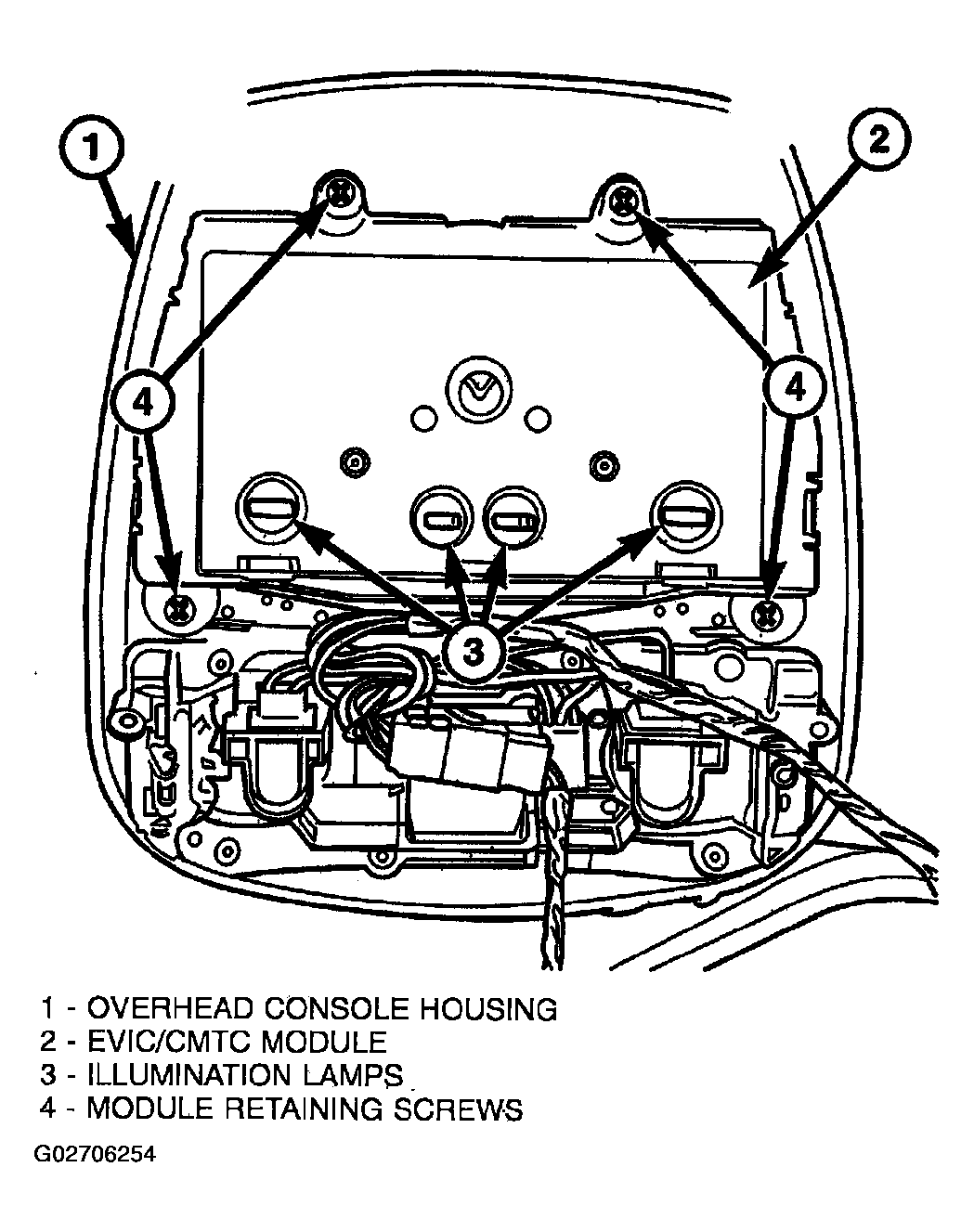

    Fig 1: Locating Electronic Vehicle Information Center For Removal/Installation
    G02706254Courtesy of DAIMLERCHRYSLER CORP.
