Tie Rod End: Installation

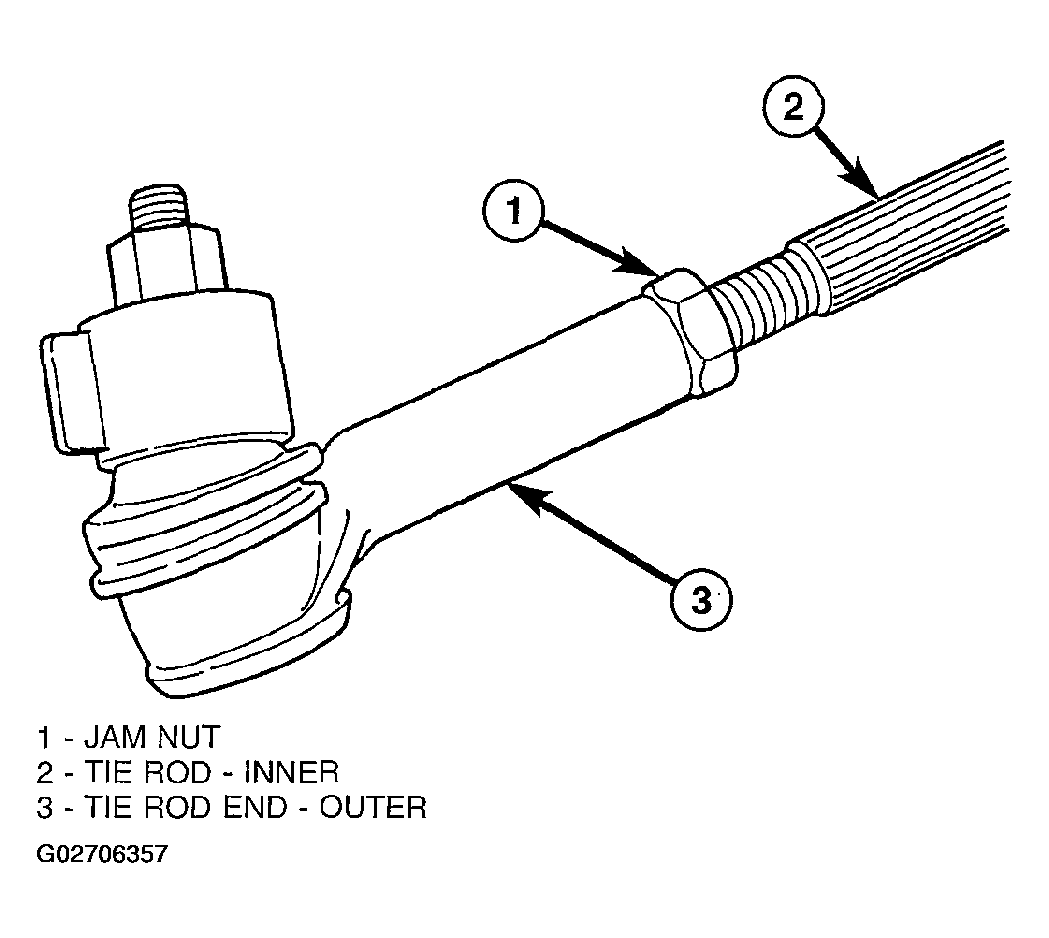

  1. Install the tie rod end to the rack to the exact number of turns that it was removed (Figure ).
  2. Install the tie rod end to the knuckle. Tighten the nut to 108 N.m (80 ft. lbs).
  3. Tighten the jam nut to 76 N.m (55 ft. lbs). (Figure ).
  4. Install the tire and wheel assembly. (Refer to TIRES/WHEELS ).
  5. Reset the toe and center the steering wheel (Refer to SPECIFICATIONS & PROCEDURES ).
