Power Distribution Center Fuses & Fuse Circuits Identification

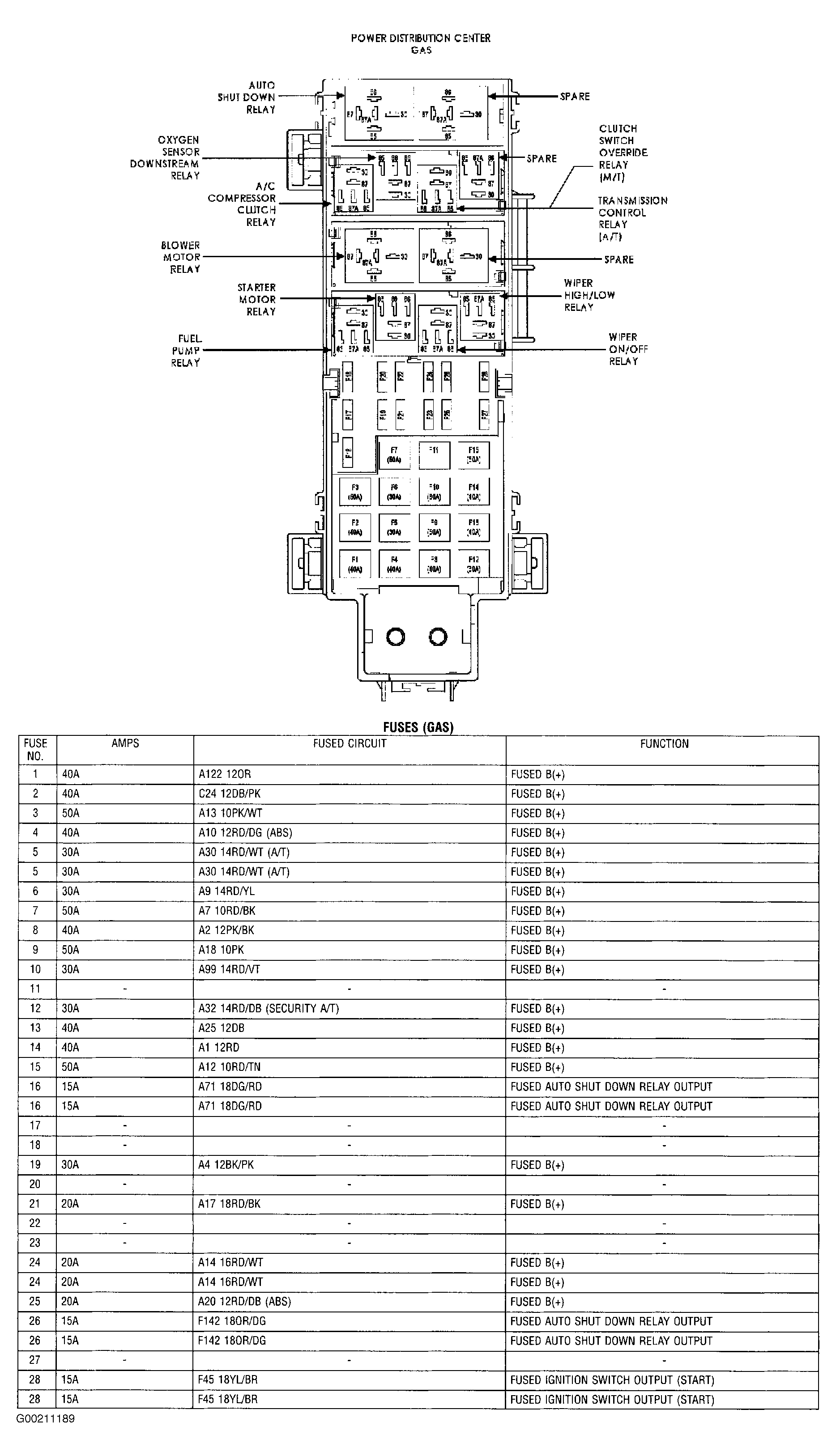

Fig 1: Identifying Power Distribution Center Fuses & Fuse Circuits

G00211189

Courtesy of CHRYSLER CORP.
