Brake Lamp Switch Harness Connector End View

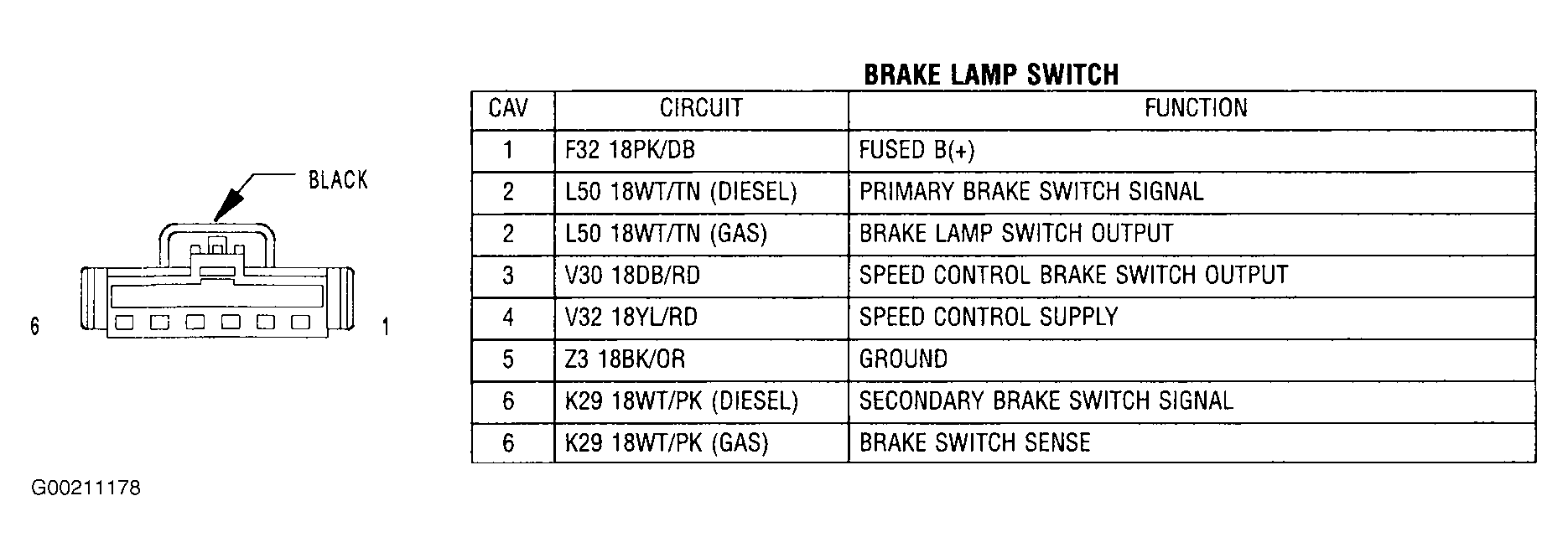

Fig 1: Identifying Brake Lamp Switch Harness Connector
G00211178Courtesy of CHRYSLER CORP.
