Transmission Range Sensor Switch States

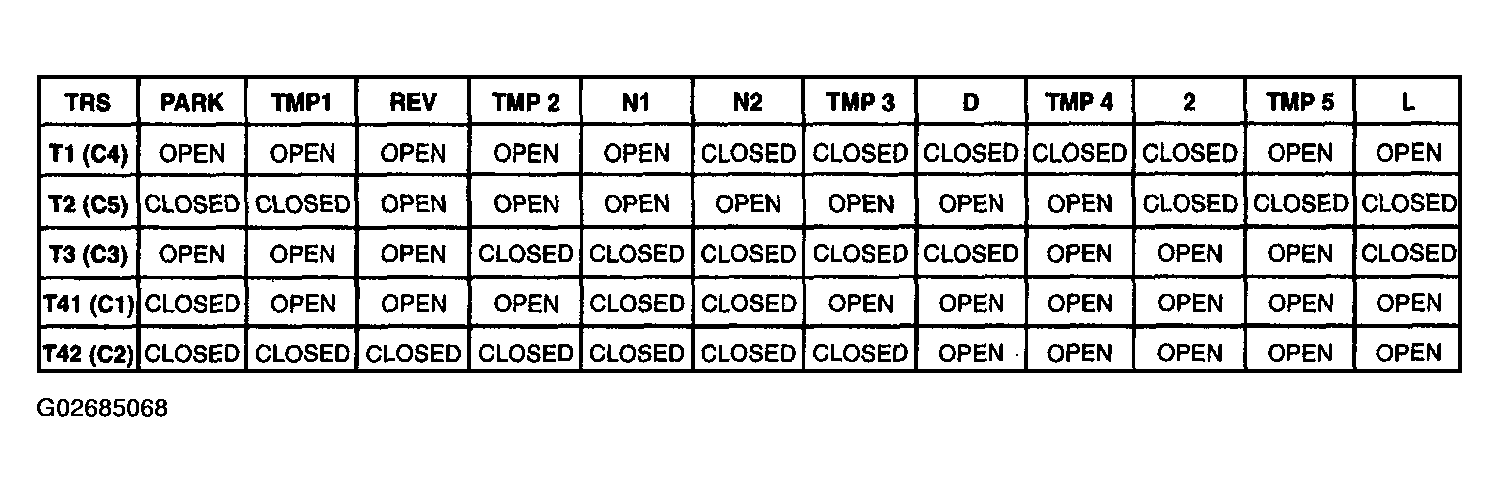

Fig 1: Transmission Range Sensor Switch States Chart - 42RLE

Courtesy of DAIMLERCHRYSLER CORP.

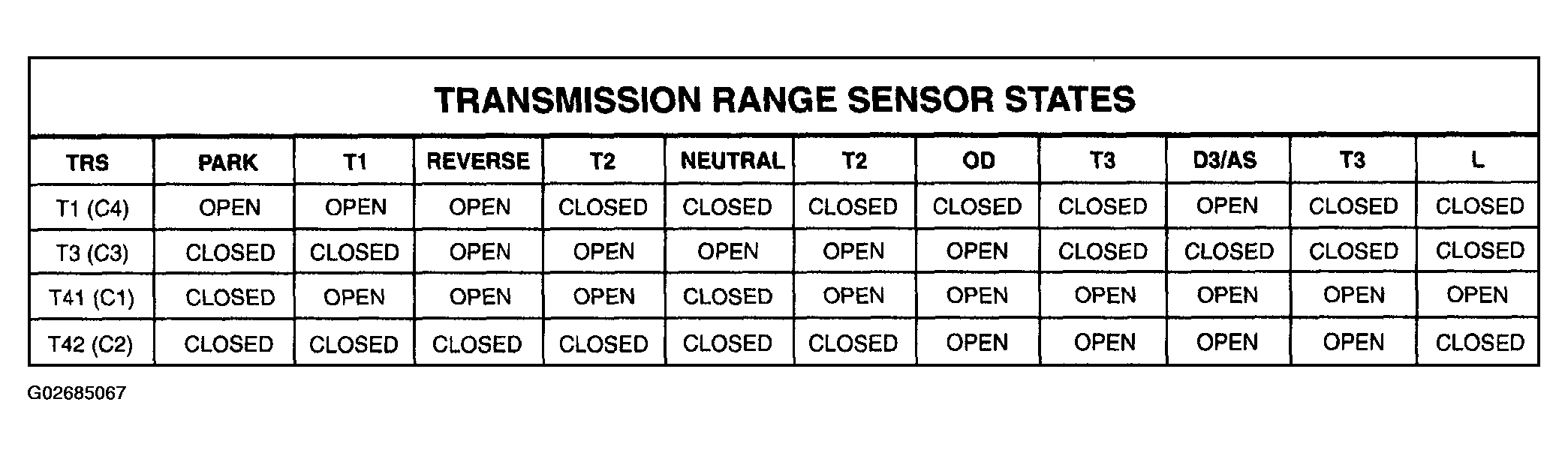

Fig 2: TRS Switch States Chart - 45RFE/545RFE

Courtesy of DAIMLERCHRYSLER CORP.
