Throttle Position Sensor (Gas) Connector End View

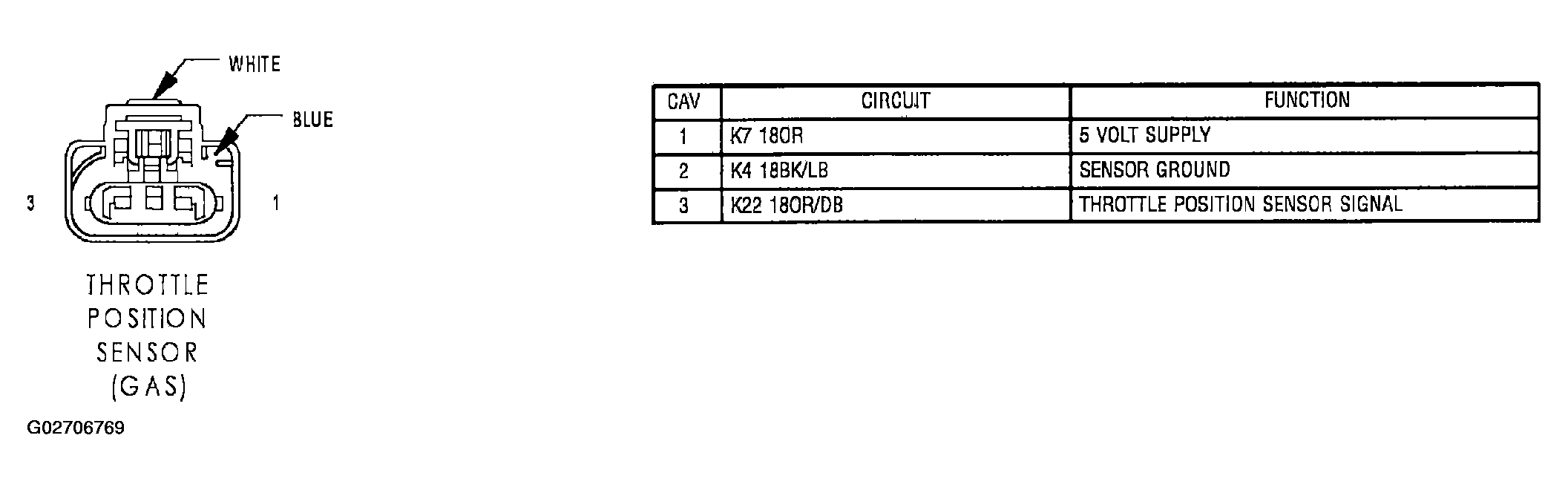

Fig 1: Throttle Position Sensor (Gas) Connector End View

G02706769

Courtesy of DAIMLERCHRYSLER CORP.
