Junction Block Connector End View (C3)

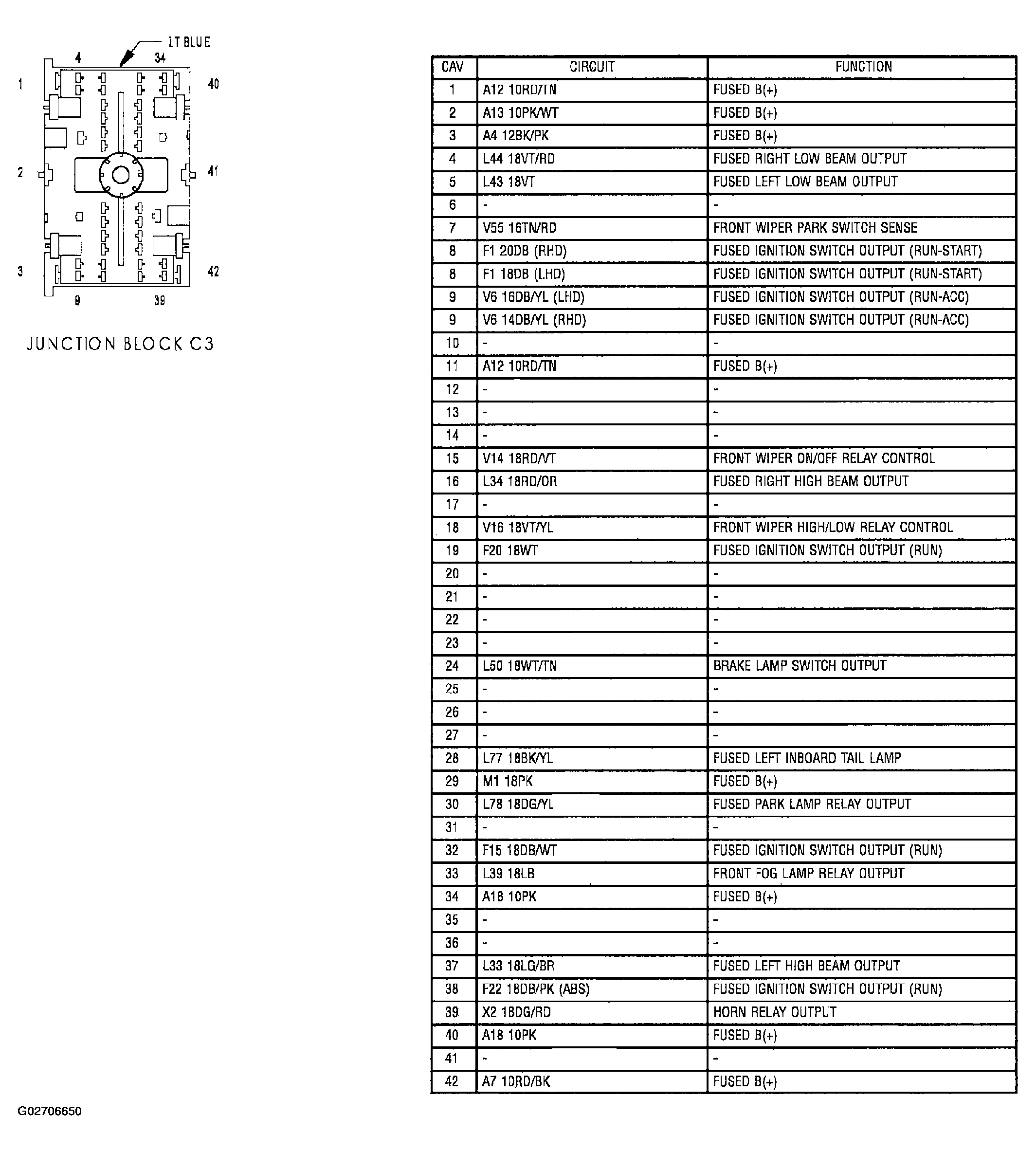

Fig 1: Junction Block Connector End View (C3)

G02706650

Courtesy of DAIMLERCHRYSLER CORP.
