Overhead Console: Description

An overhead console is standard factory-installed equipment on this model. The available overhead consoles can include the Compass Mini-Trip Computer without universal transmitter (Fig 1 ), with the universal transmitter (Fig 2 ), or base console with only two reading and courtesy lamps (Fig 3 ). All overhead consoles are equipped with two reading and courtesy lamps. On vehicles equipped with a power sunroof, the sunroof switch is located between the two reading and courtesy lamps. The overhead console is mounted with one screw and two snap clips to a molded plastic retainer bracket located above the headliner.

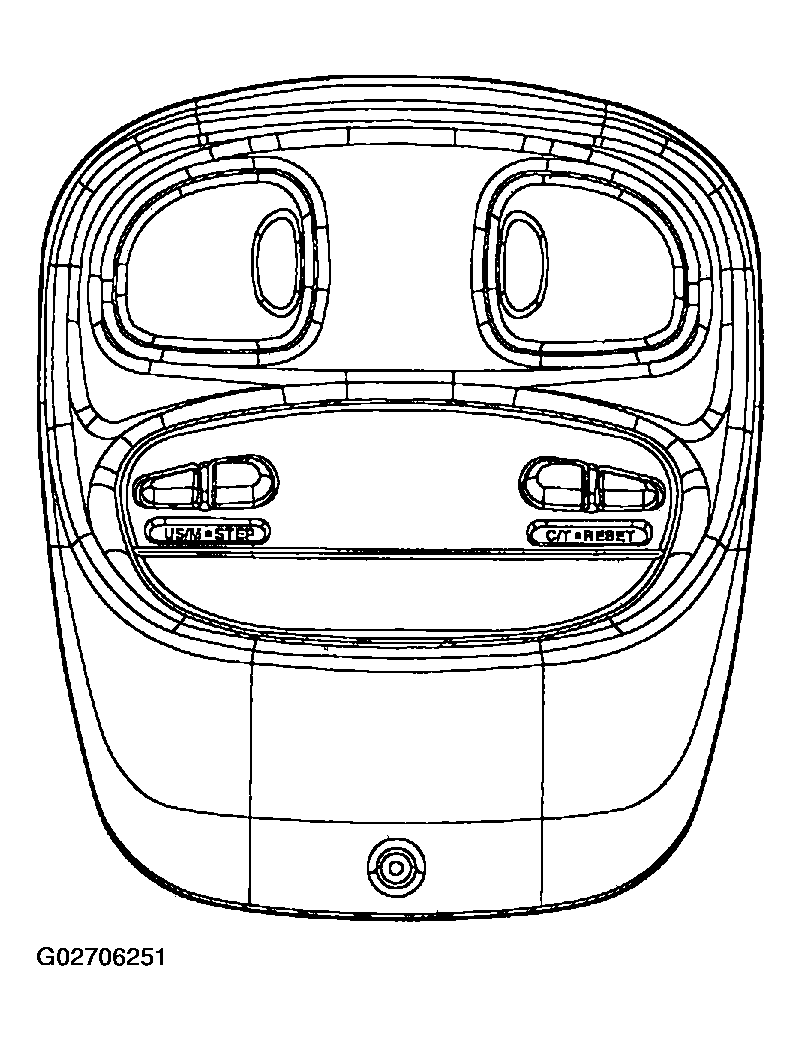

Fig 1: Identifying Overhead Console Without Universal Transmitter
G02706251Courtesy of DAIMLERCHRYSLER CORP.

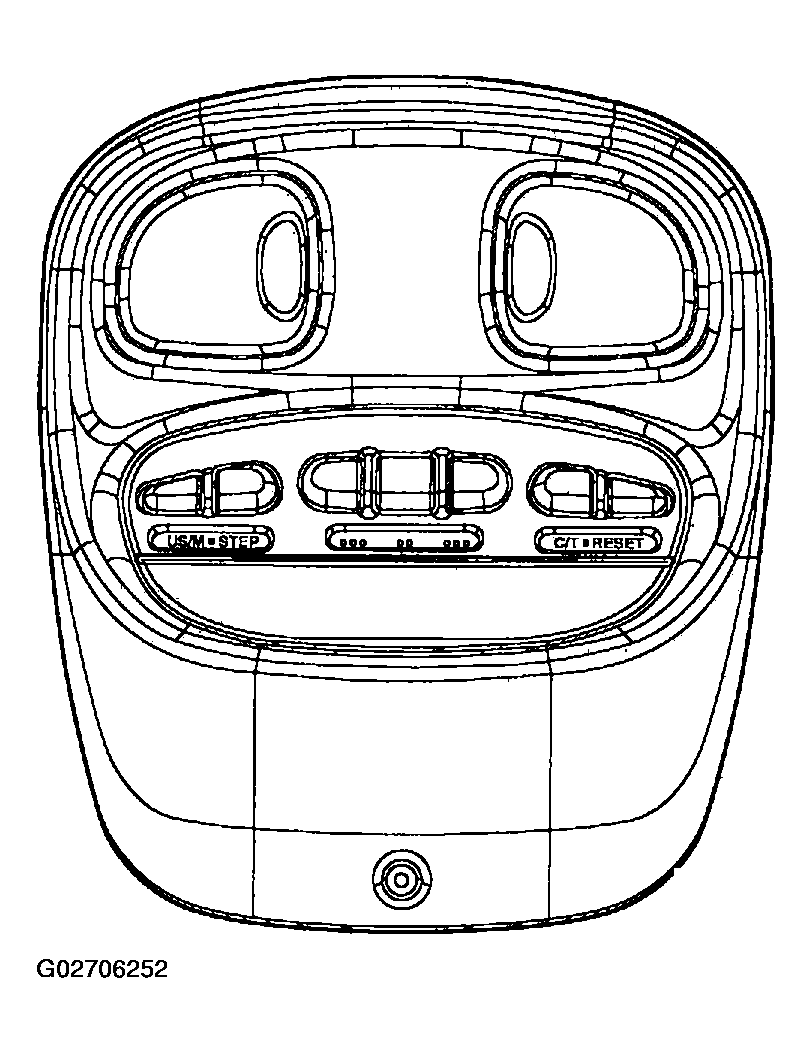

Fig 2: Identifying Overhead Console With Universal Transmitter
G02706252Courtesy of DAIMLERCHRYSLER CORP.
Fig 3: Identifying Base Console
G02706253Courtesy of DAIMLERCHRYSLER CORP.
