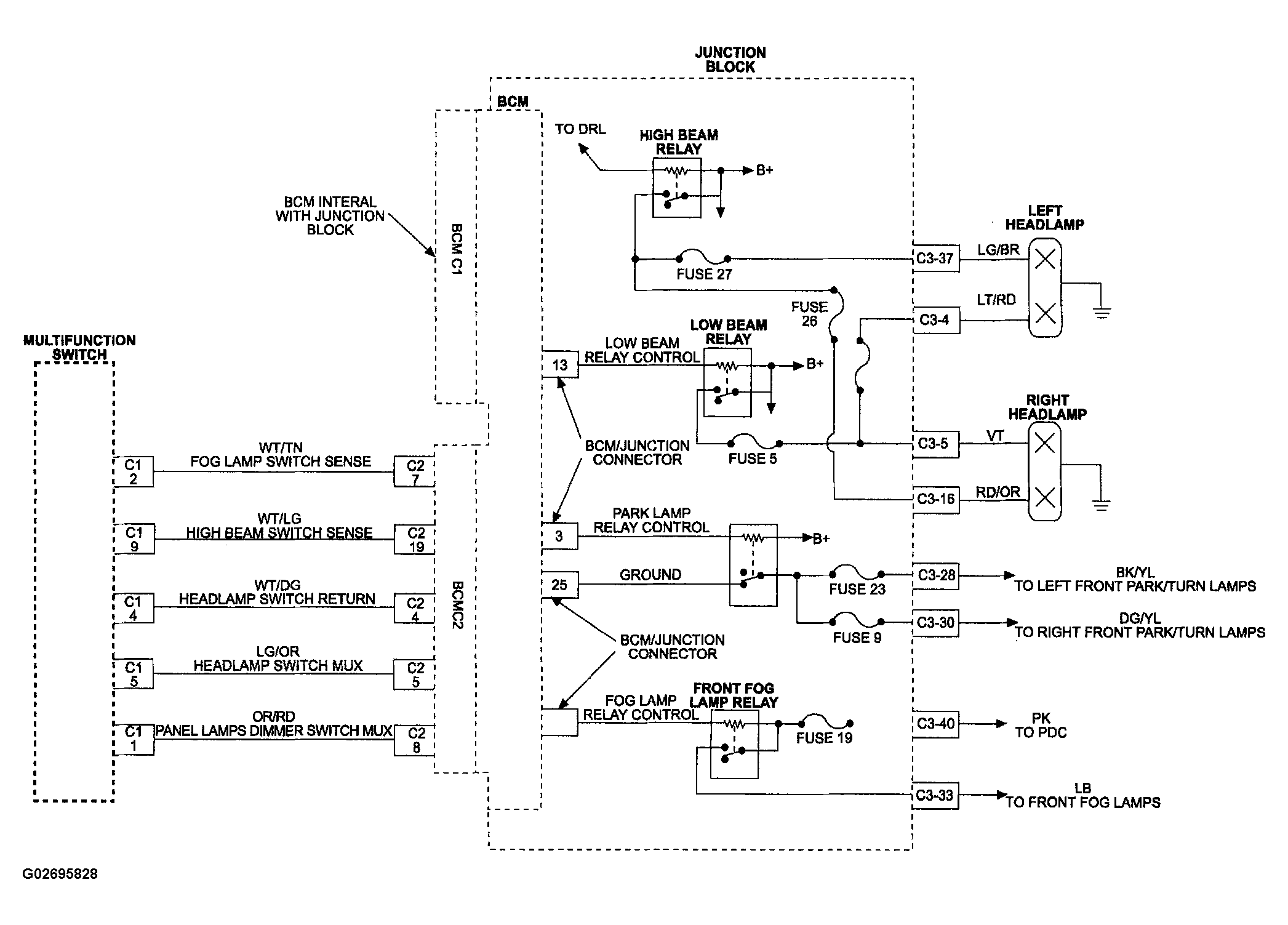

Home >> Jeep >> 2003 >> Liberty Limited, 4WD, Part Time, 45RFE >> Repair and Diagnosis >> Body & Frame >> Body, Cab Control Systems >> Body Diagnostic Procedures >> Schematic Diagrams >> Exterior Lighting
