Automatic Transmission Diagnostic Procedures
>>
Component Locations
>>
Transmission Control Module
Transmission Control Module

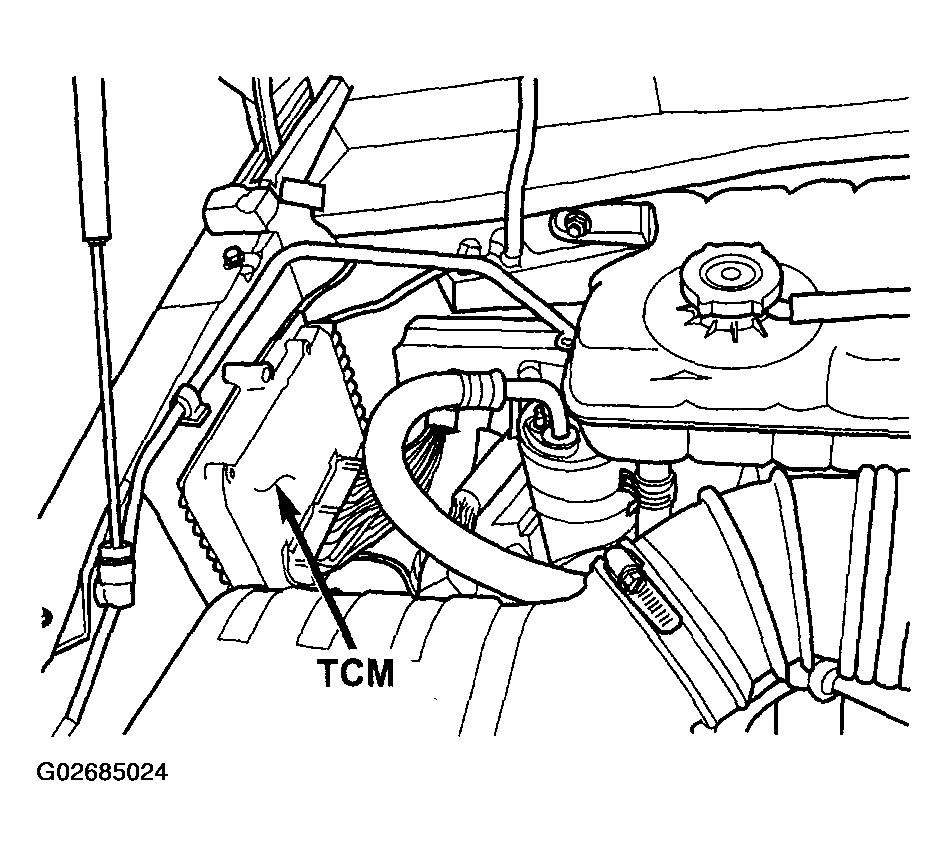

Fig 1: Locating Transmission Control Module - Left Hand Drive
Courtesy of DAIMLERCHRYSLER CORP.

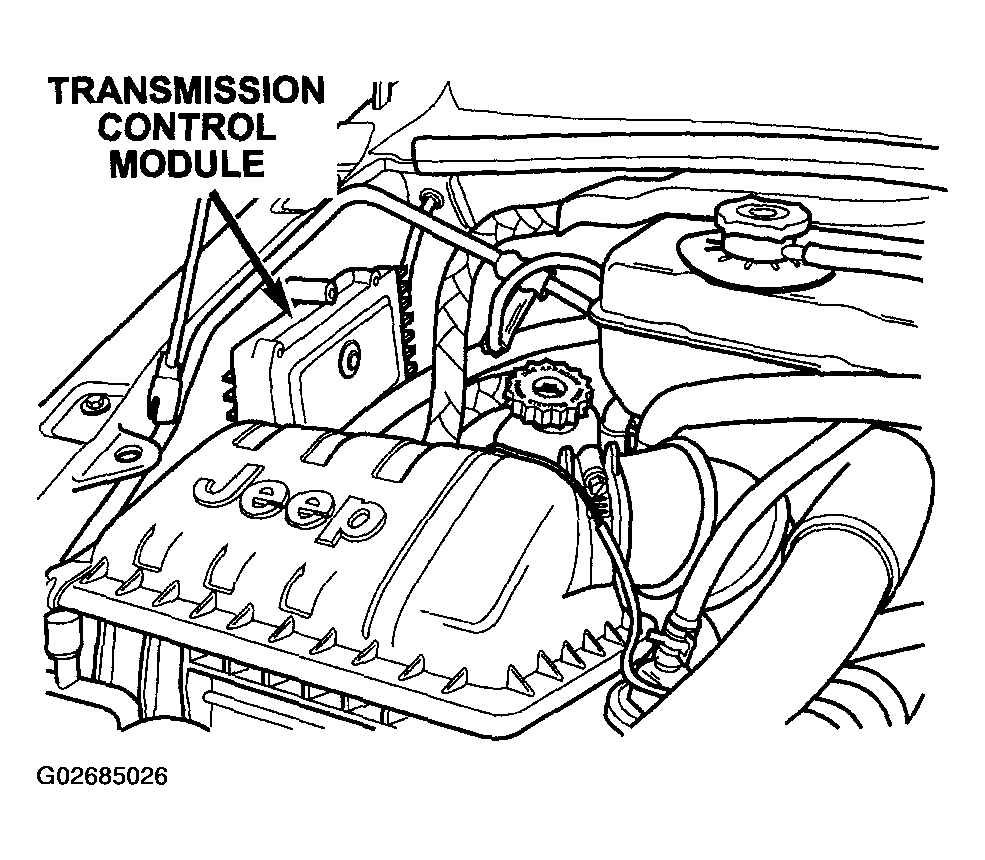

Fig 2: Locating Transmission Control Module - Right Hand Drive
Courtesy of DAIMLERCHRYSLER CORP.
Fig 3: Locating Transmission Control Module - Diesel
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
