Tailgate Lock Motor/ Ajar Switch Connector End View

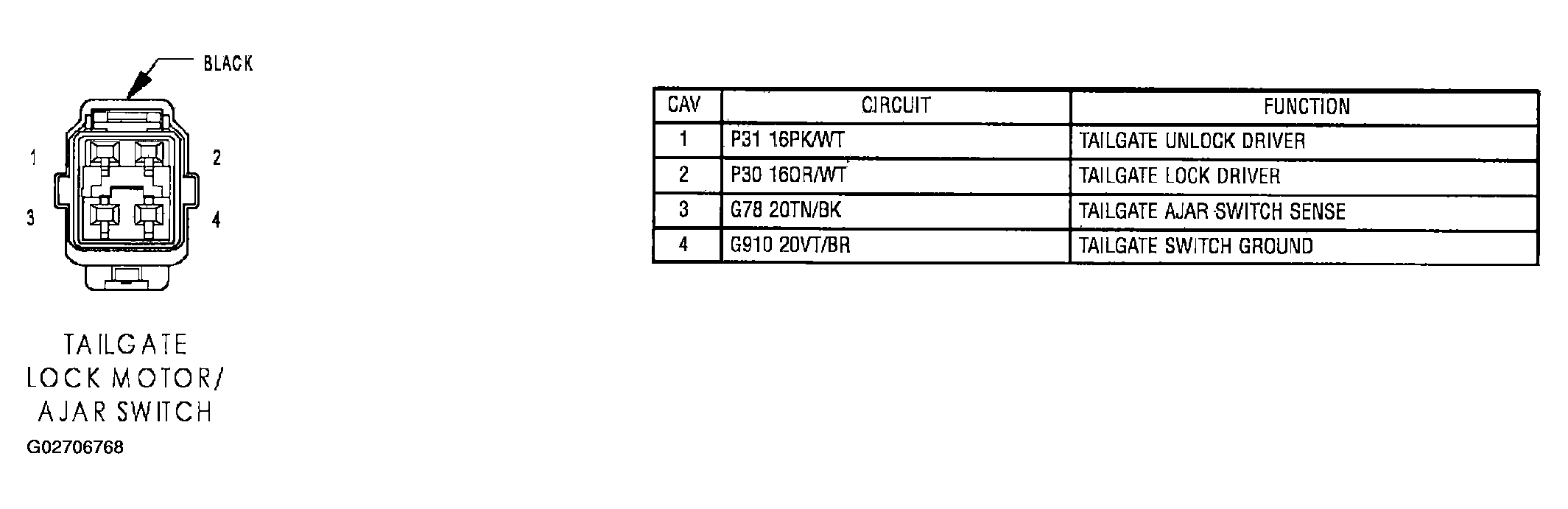

Fig 1: Tailgate Lock Motor/ Ajar Switch Connector End View

G02706768

Courtesy of DAIMLERCHRYSLER CORP.
