Right Power Mirror (Except Base) Connector End View
Right Power Mirror (Except Base) Connector End View

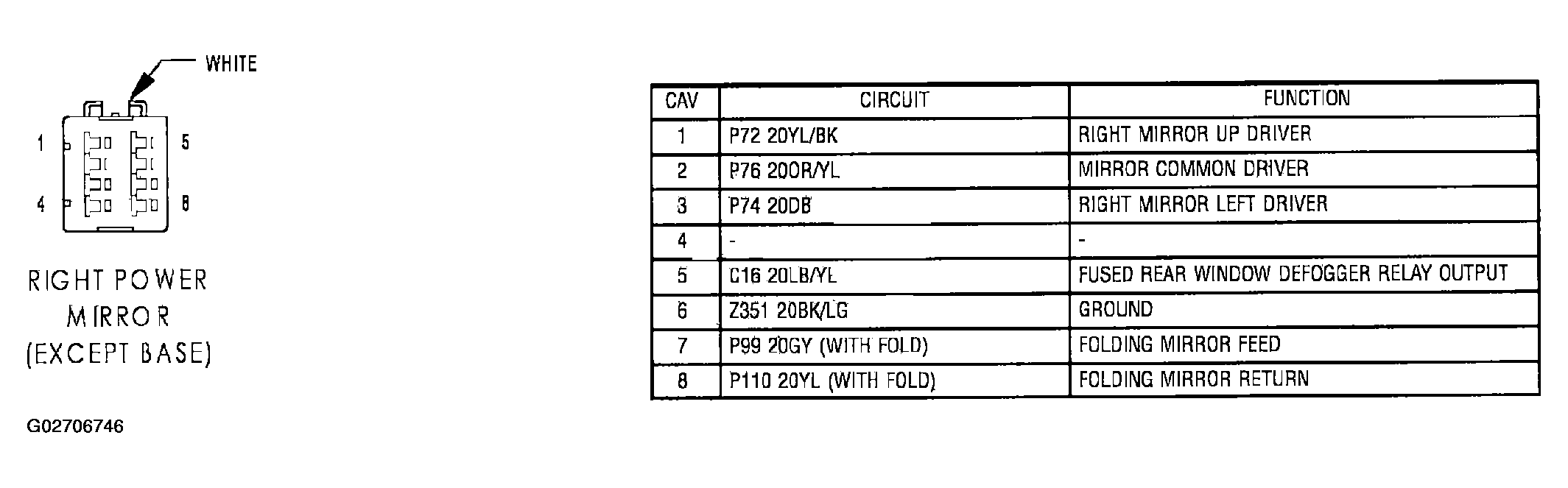

Fig 1: Right Power Mirror (Except Base) Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
