Rear Power Window Switch (Midline/Highline) Connector End View

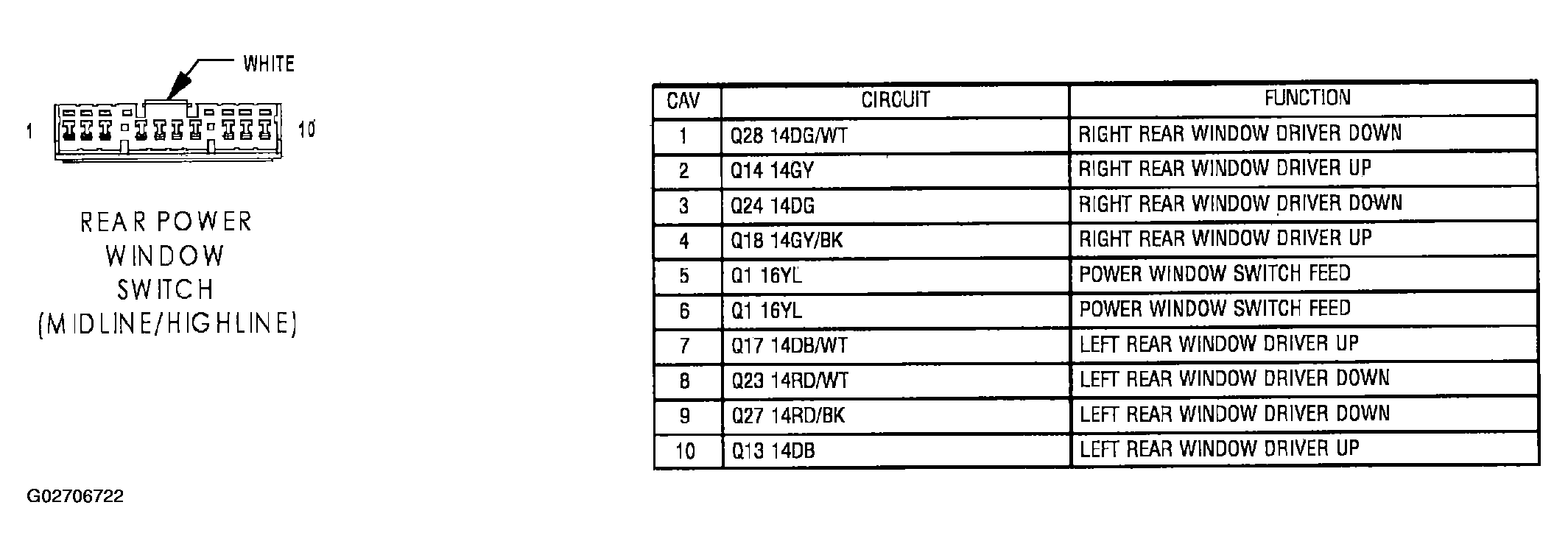

Fig 1: Rear Power Window Switch (Midline/Highline) Connector End View

G02706722

Courtesy of DAIMLERCHRYSLER CORP.
