Driver Seat Belt Switch Connector End View

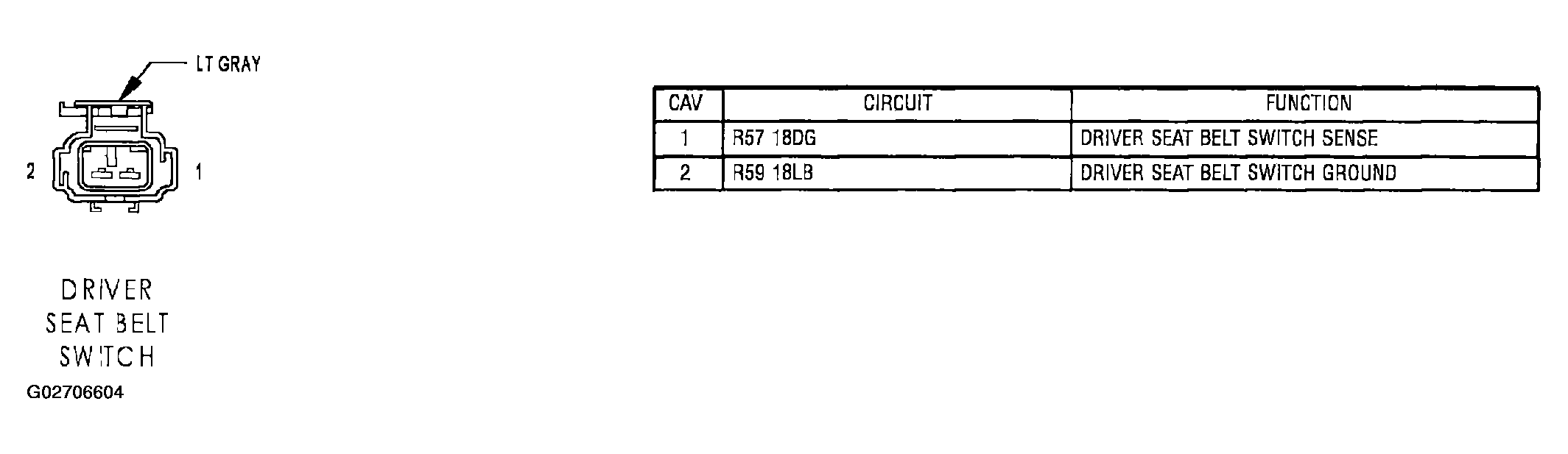

Fig 1: Driver Seat Belt Switch Connector End View

G02706604

Courtesy of DAIMLERCHRYSLER CORP.
