Jeep
>>
2003
>>
Liberty Limited, 4WD, Part Time, 42RLE
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Self-Diagnostics
>>
Connector Identification
>>

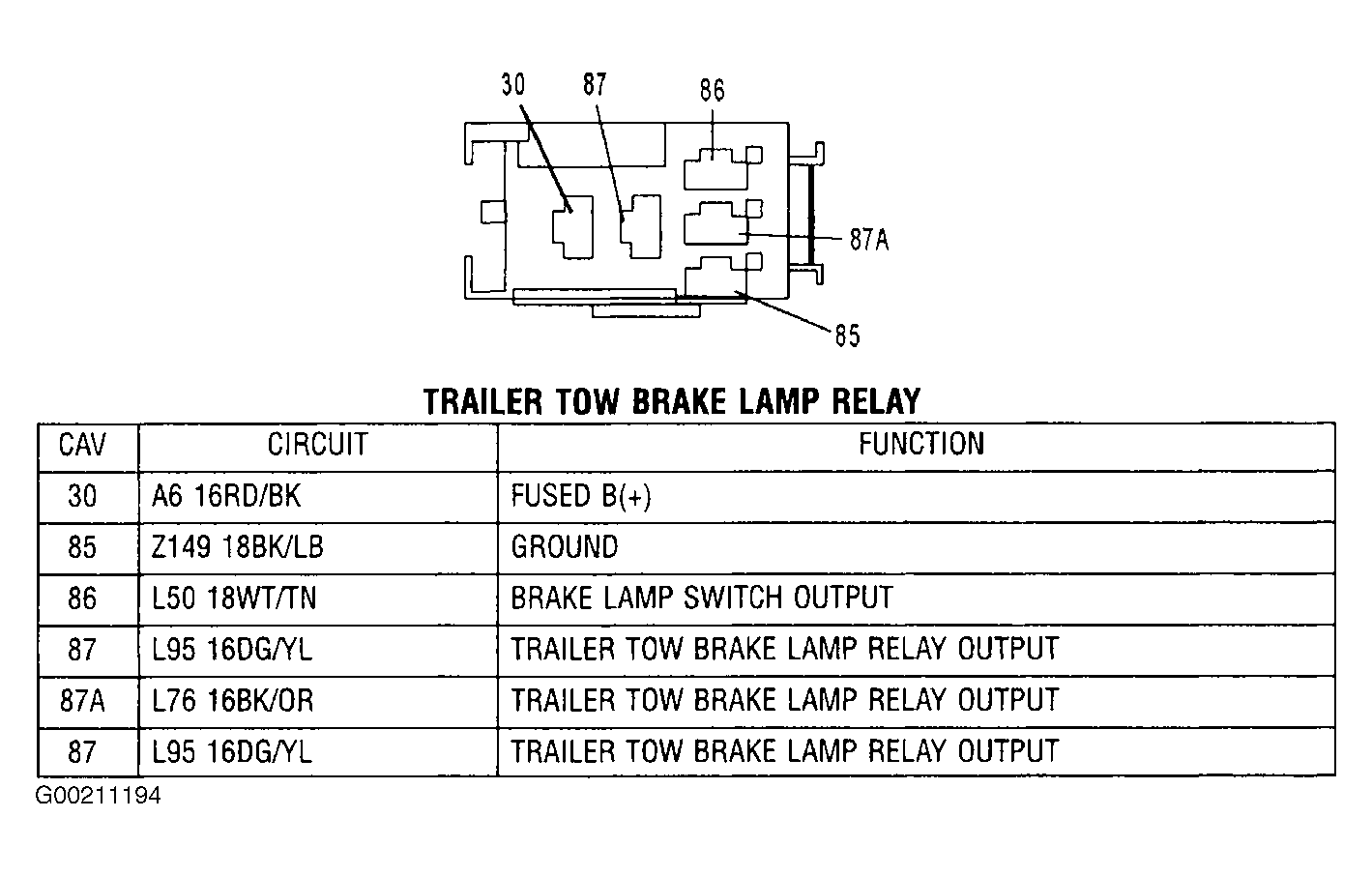

Trailer Tow Brake Lamp Relay Connector End View
Trailer Tow Brake Lamp Relay Connector End View
Fig 1: Identifying Trailer Tow Brake Lamp Relay
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
