Transfer Case Position Sensor Connector End View

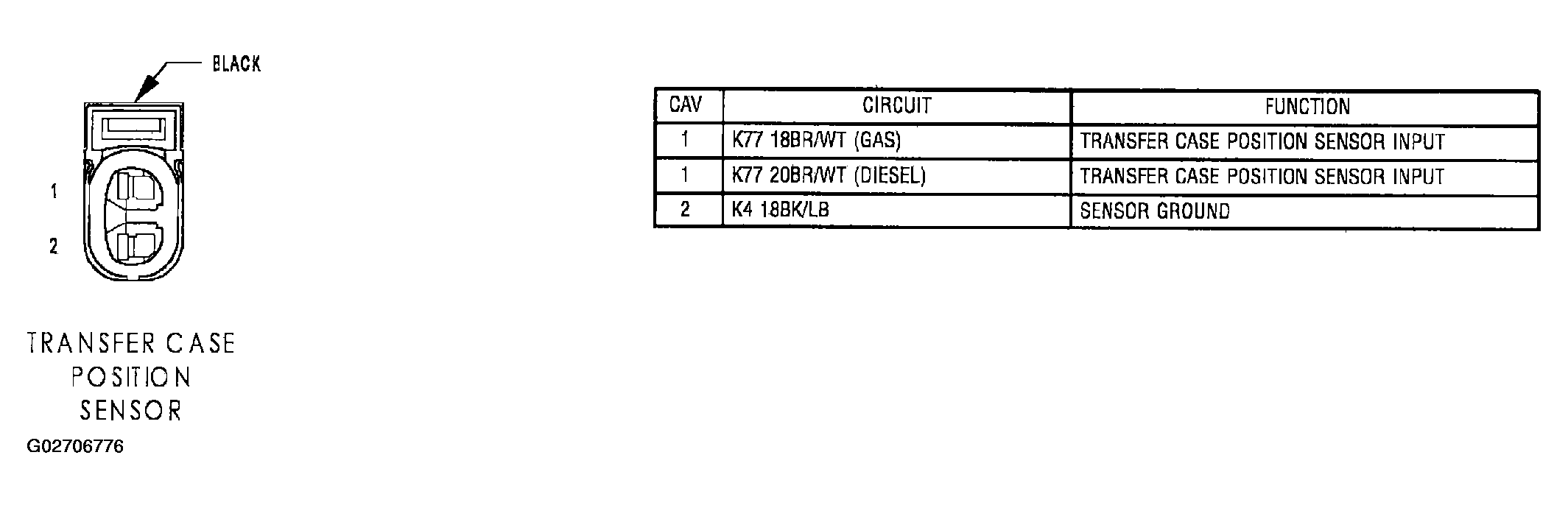

Fig 1: Transfer Case Position Sensor Connector End View

G02706776

Courtesy of DAIMLERCHRYSLER CORP.
