Speed Control Servo Connector End View

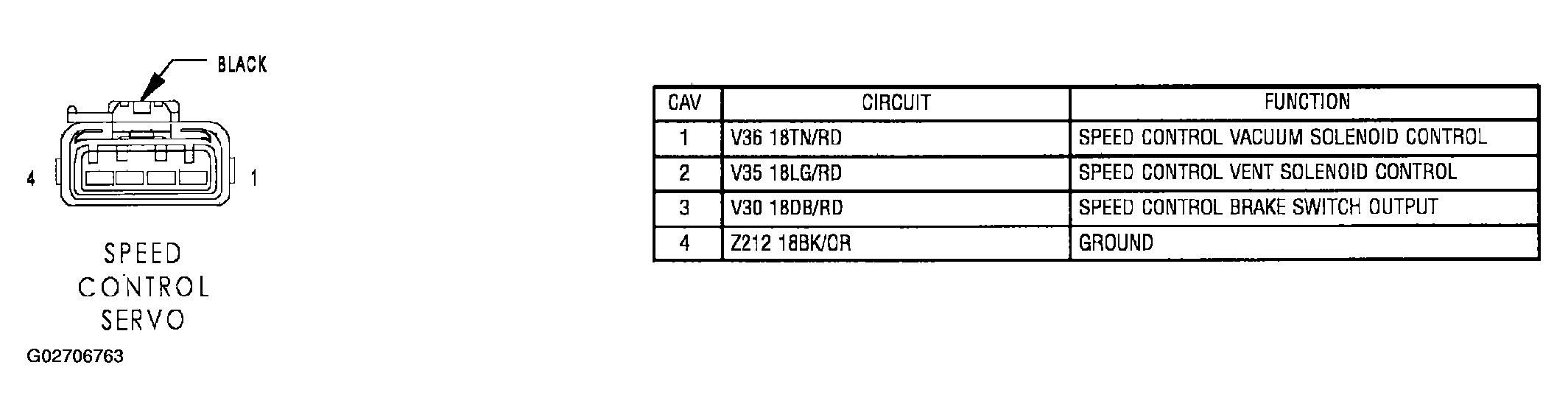

Fig 1: Speed Control Servo Connector End View

G02706763

Courtesy of DAIMLERCHRYSLER CORP.
