Remote Keyless Entry Module (Except Base) Connector End View

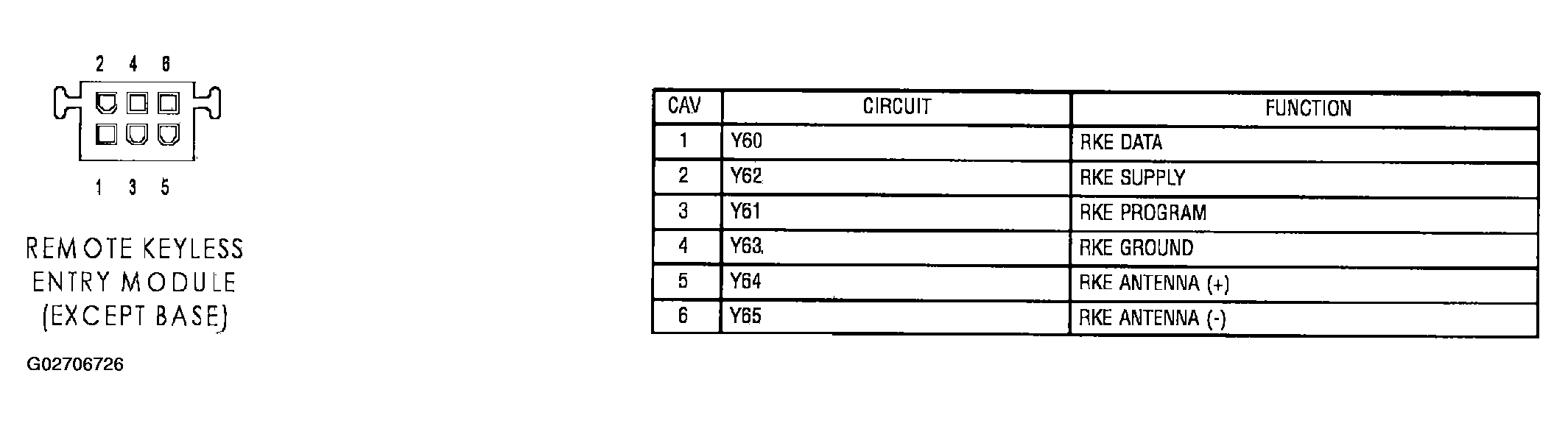

Fig 1: Remote Keyless Entry Module (Except Base) Connector End View
G02706726Courtesy of DAIMLERCHRYSLER CORP.
