Powertrain Control Module (Gas) Connector End View (C3)

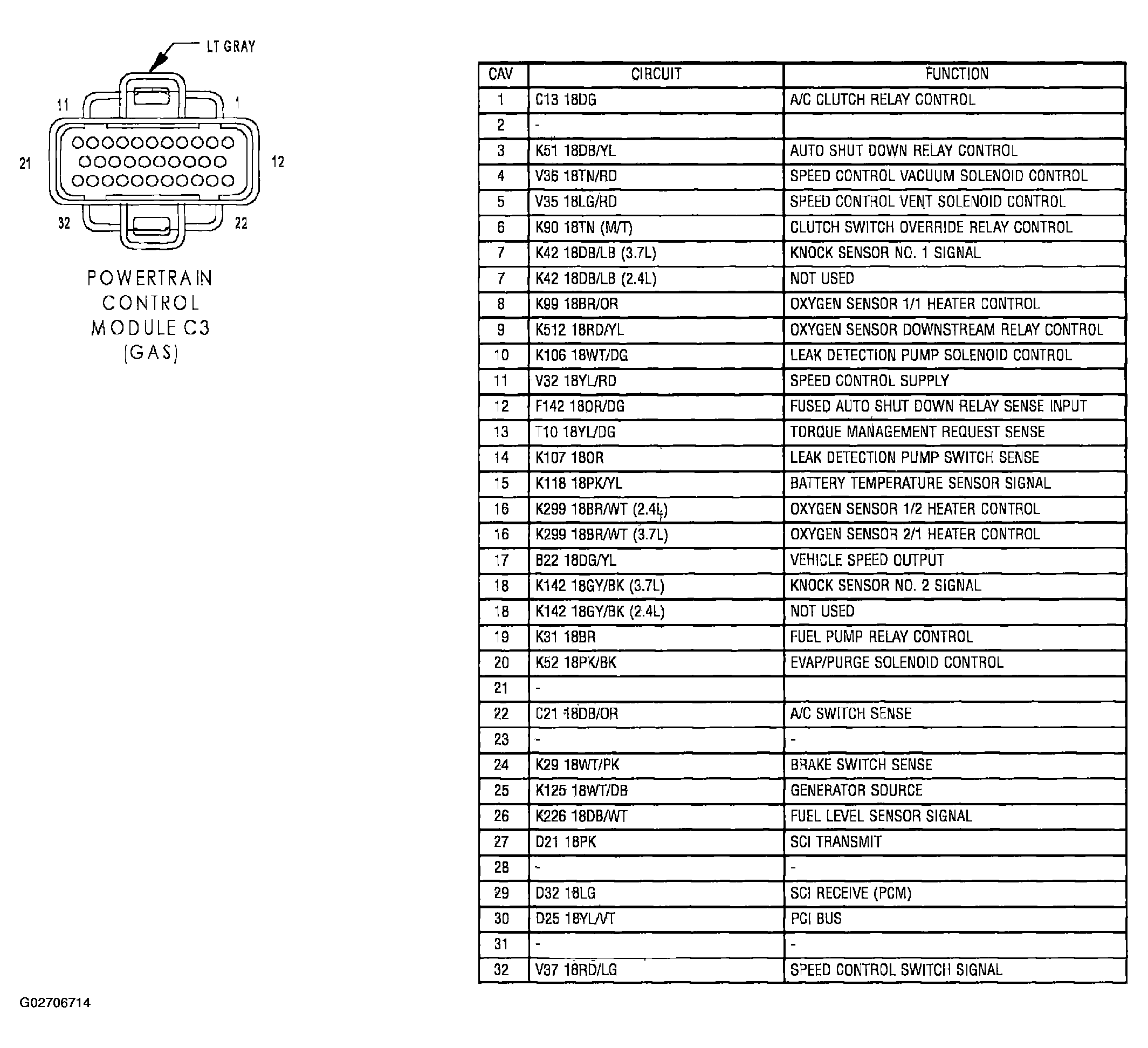

Fig 1: Powertrain Control Module (Gas) Connector End View (C3)

G02706714

Courtesy of DAIMLERCHRYSLER CORP.
