ORC Airbag Control Module Connector End View (C2)

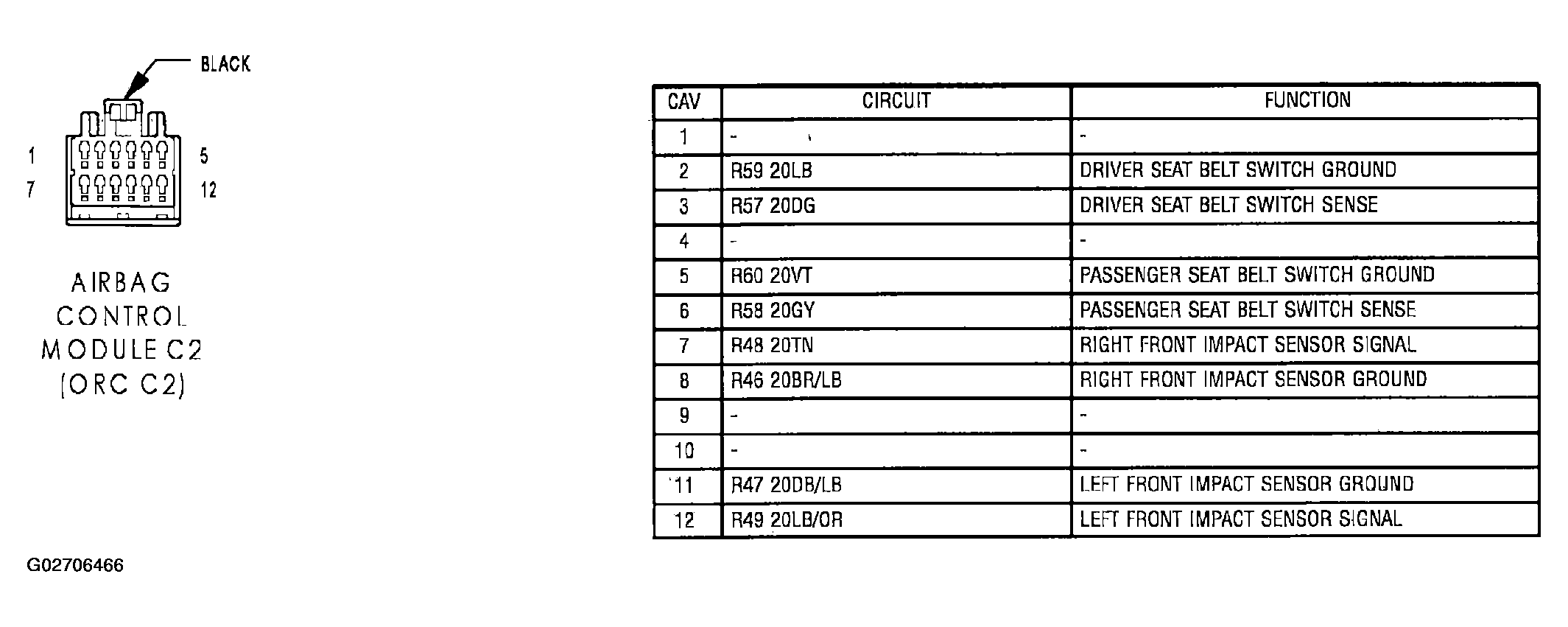

Fig 1: ORC Airbag Control Module Connector End View (C2)

G02706466

Courtesy of DAIMLERCHRYSLER CORP.
