Left Side Impact Airbag Control Module Connector End View

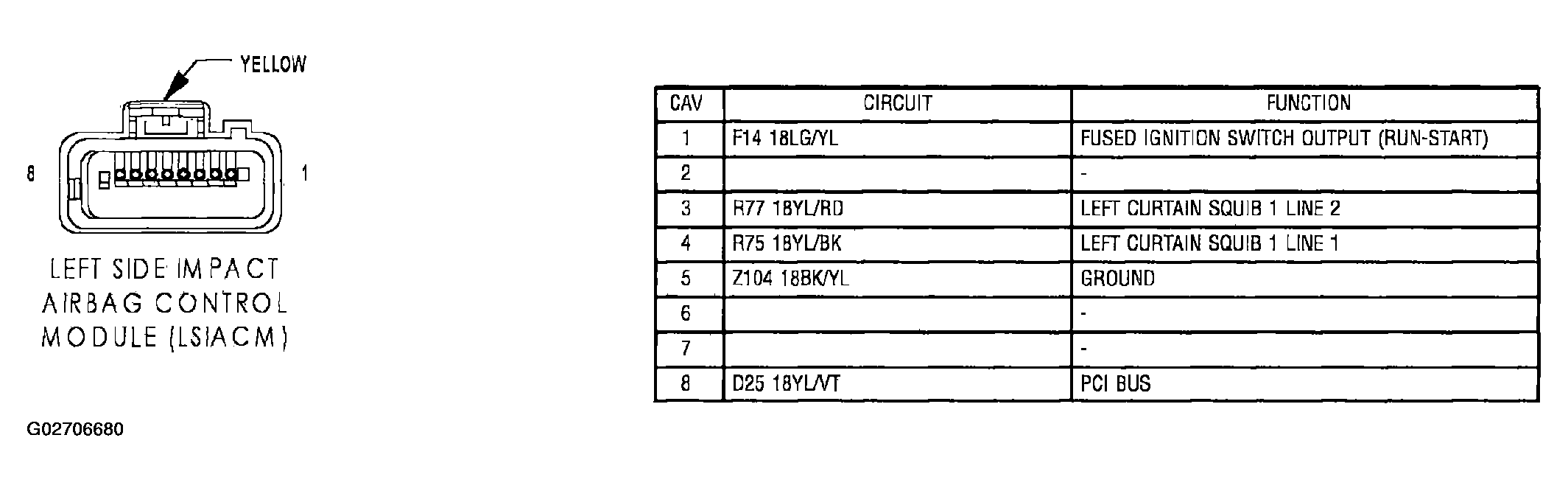

Fig 1: Left Side Impact Airbag Control Module Connector End View

G02706680

Courtesy of DAIMLERCHRYSLER CORP.
