Left Front Impact Sensor Connector End View

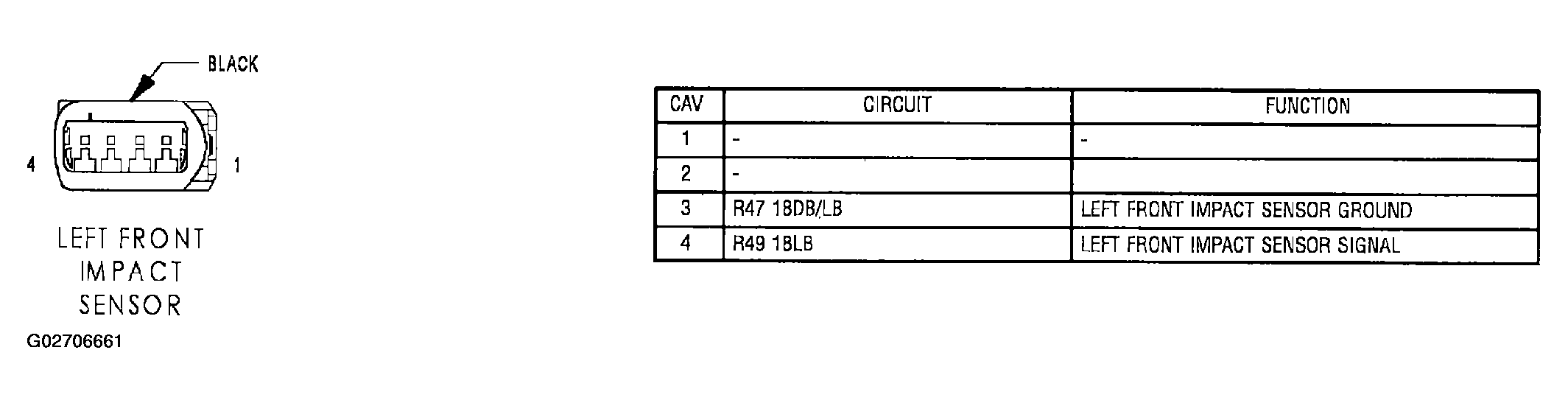

Fig 1: Left Front Impact Sensor Connector End View

G02706661

Courtesy of DAIMLERCHRYSLER CORP.
