Junction Block Body Control Module Connector End View

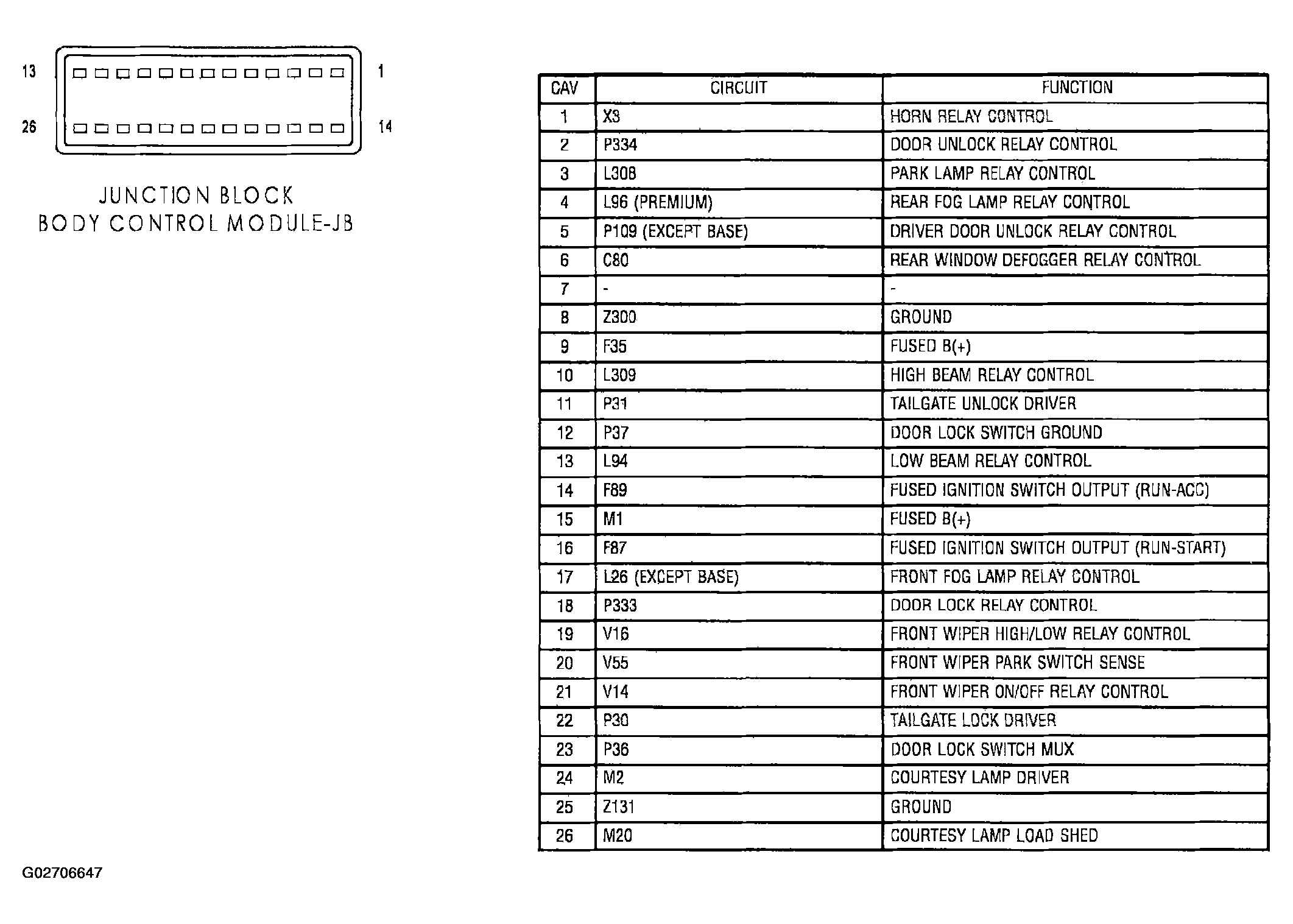

Fig 1: Junction Block Body Control Module Connector End View

G02706647

Courtesy of DAIMLERCHRYSLER CORP.
