Intrusion Transceiver Module (Export) Connector End View

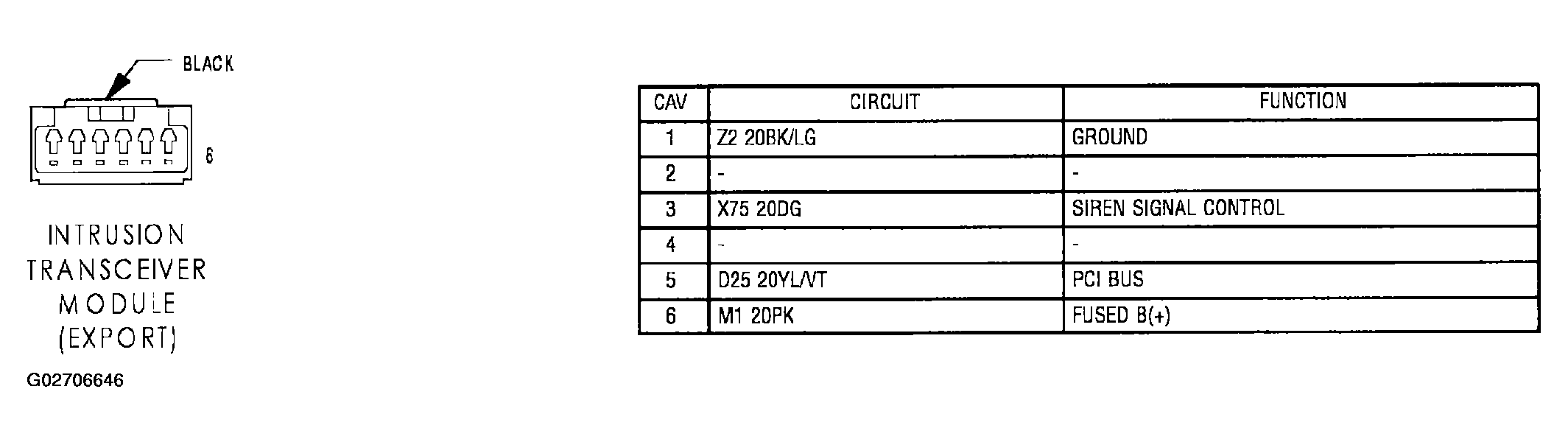

Fig 1: Intrusion Transceiver Module (Export) Connector End View

G02706646

Courtesy of DAIMLERCHRYSLER CORP.
