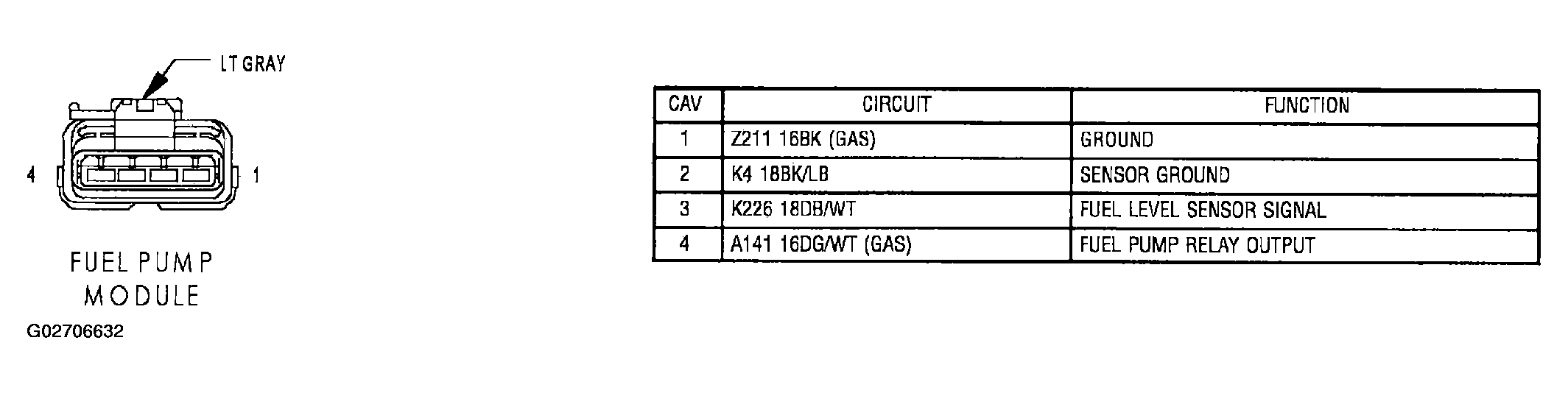

Home >> Jeep >> 2003 >> Liberty Limited, 4WD, Part Time, 42RLE >> Repair and Diagnosis >> Electrical >> Body Electrical >> Connector End Views >> Connector Pin-Outs >> Fuel Pump Module Connector End View
