Engine Control Module (Diesel) Connector End View (C1)

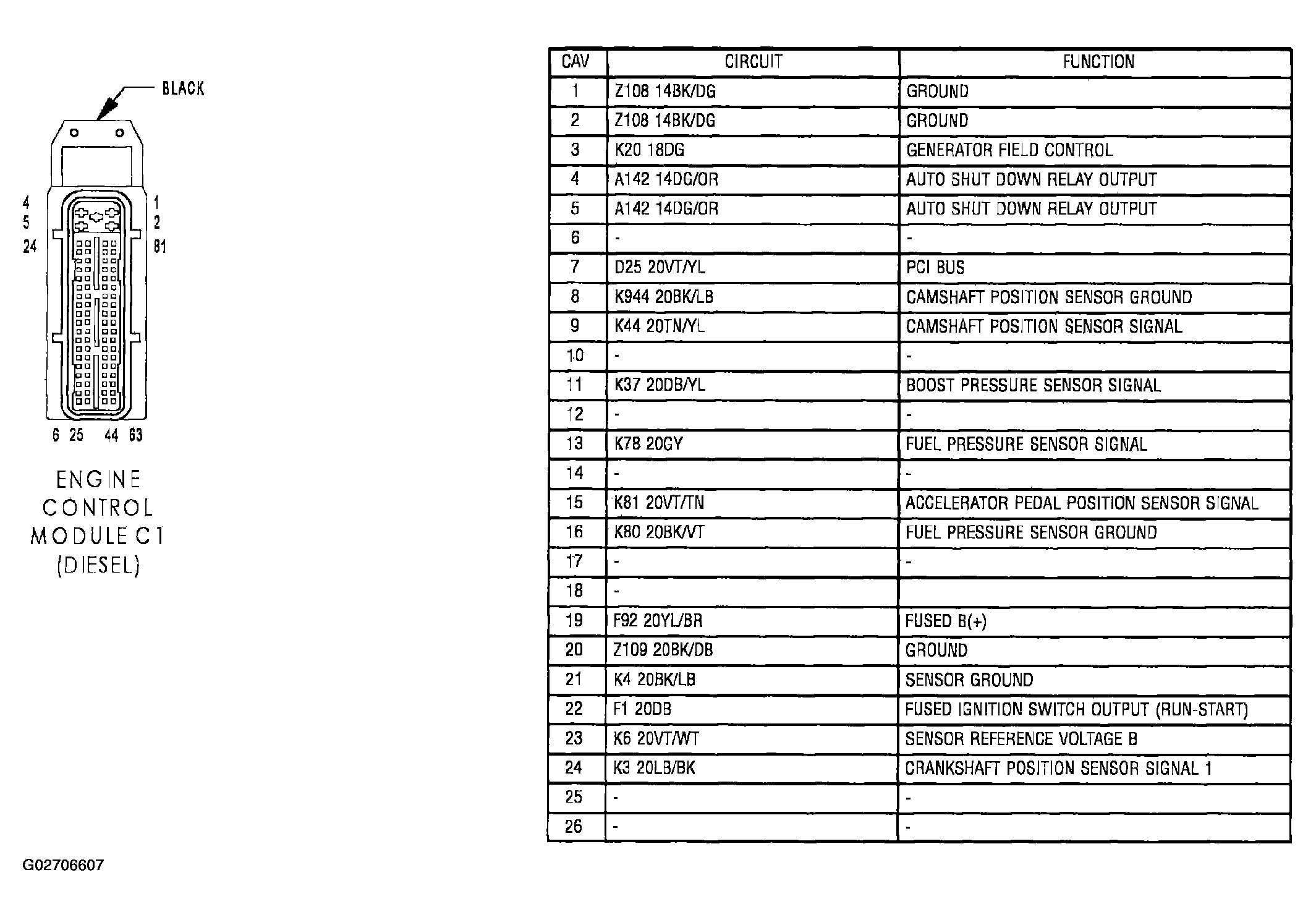

Fig 1: Engine Control Module (Diesel) Connector End View (C1)
G02706607Courtesy of DAIMLERCHRYSLER CORP.

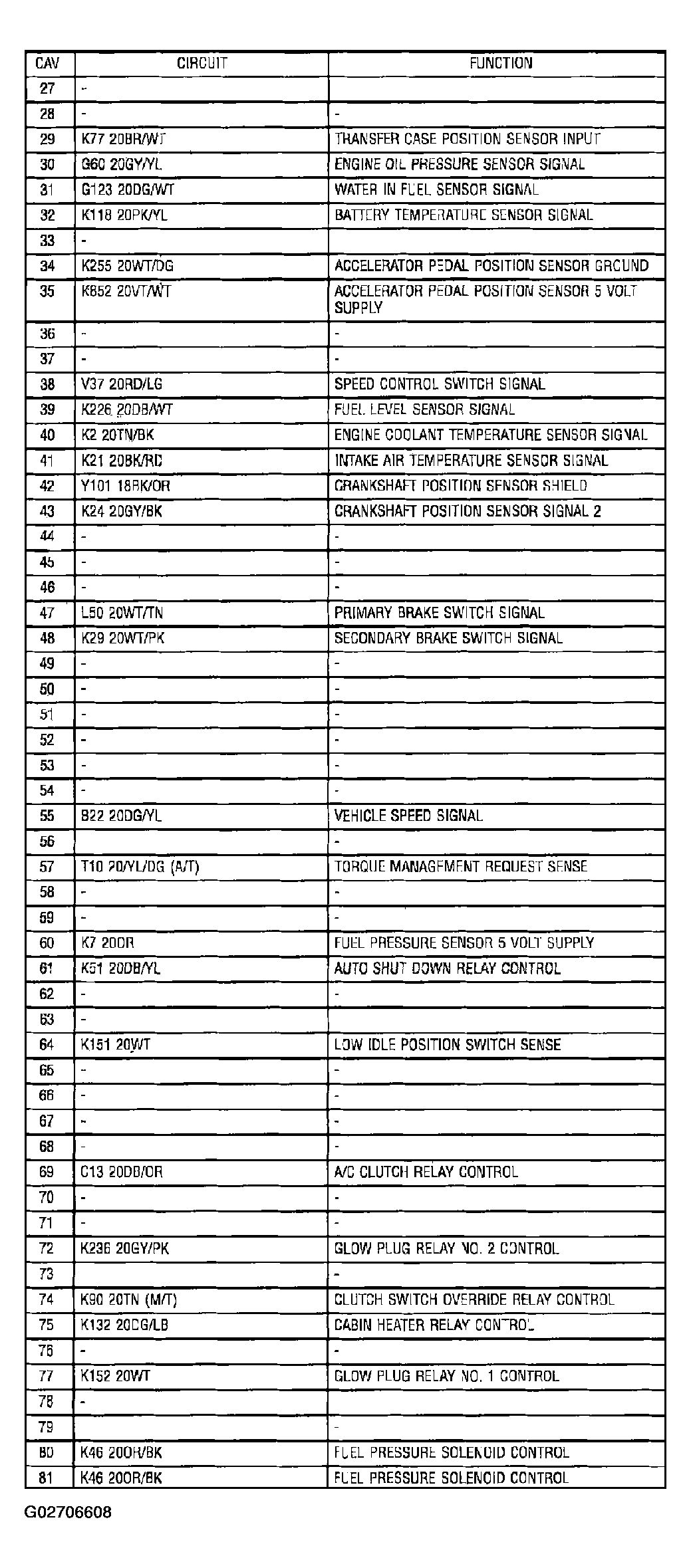

Fig 1: Engine Control Module (Diesel) Connector End View (C1)
G02706608Courtesy of DAIMLERCHRYSLER CORP.
