Body Control Module Connector End View (C1)

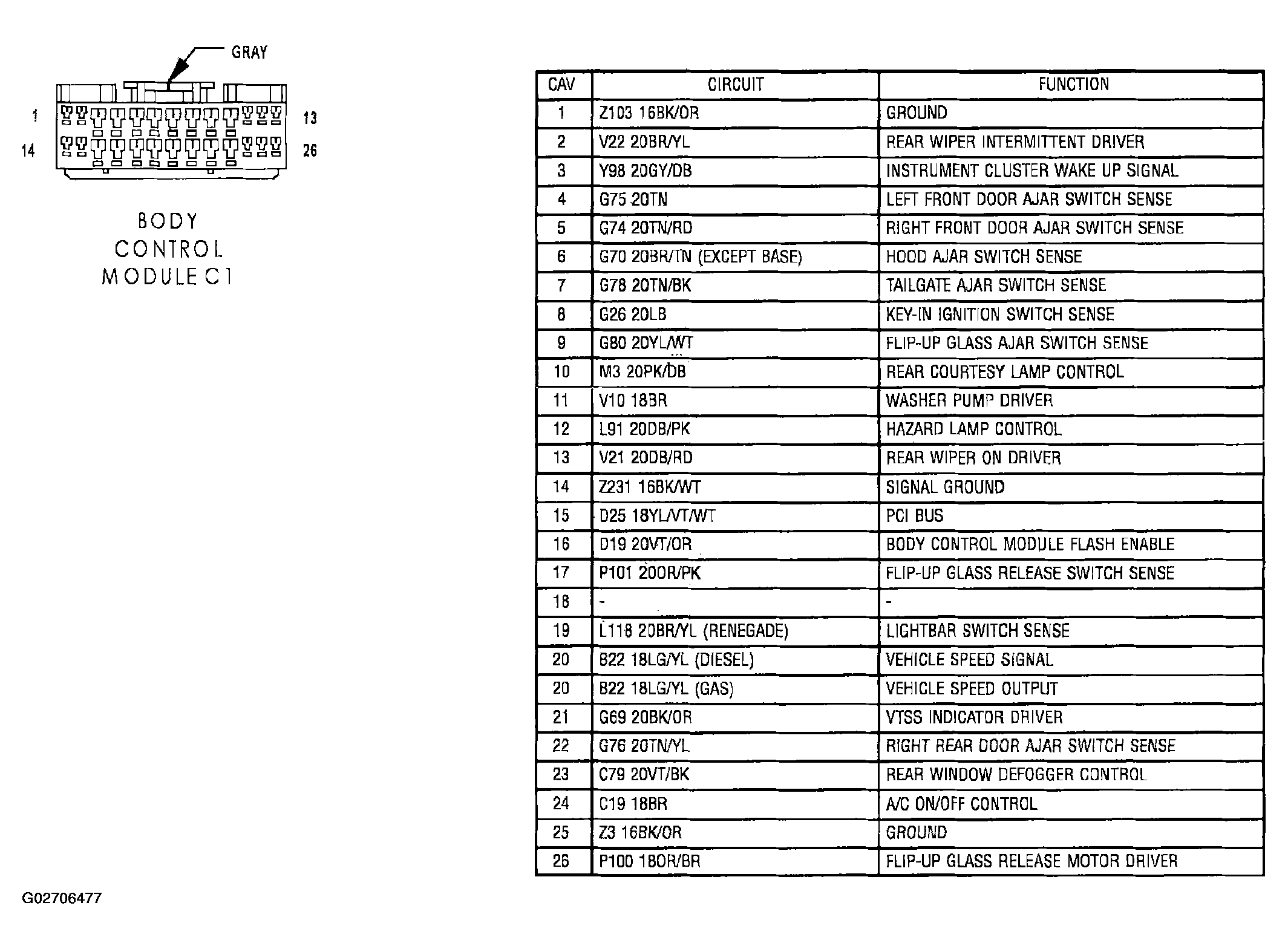

Fig 1: Body Control Module Connector End View (C1)

G02706477

Courtesy of DAIMLERCHRYSLER CORP.
