Body Control Module (Premium) Connector End View (C3)

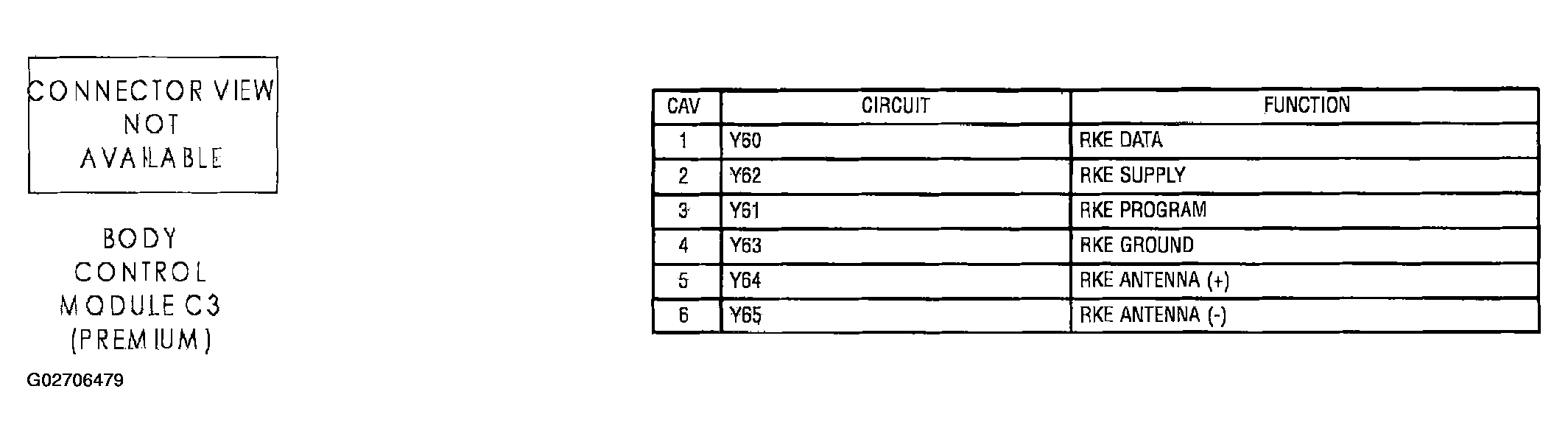

Fig 1: Body Control Module (Premium) Connector End View (C3)

G02706479

Courtesy of DAIMLERCHRYSLER CORP.
