Heated Seat Module: Removal

  1. Working under the front seat cushion (Fig 1 ), remove the heated seat module from its mounting bracket by gently prying the module off of the two mounting push pins.
  2. Disconnect the seat wire harness connector from the connector receptacle on the side of the heated seat module.
  3. Remove the heated seat module from the vehicle.

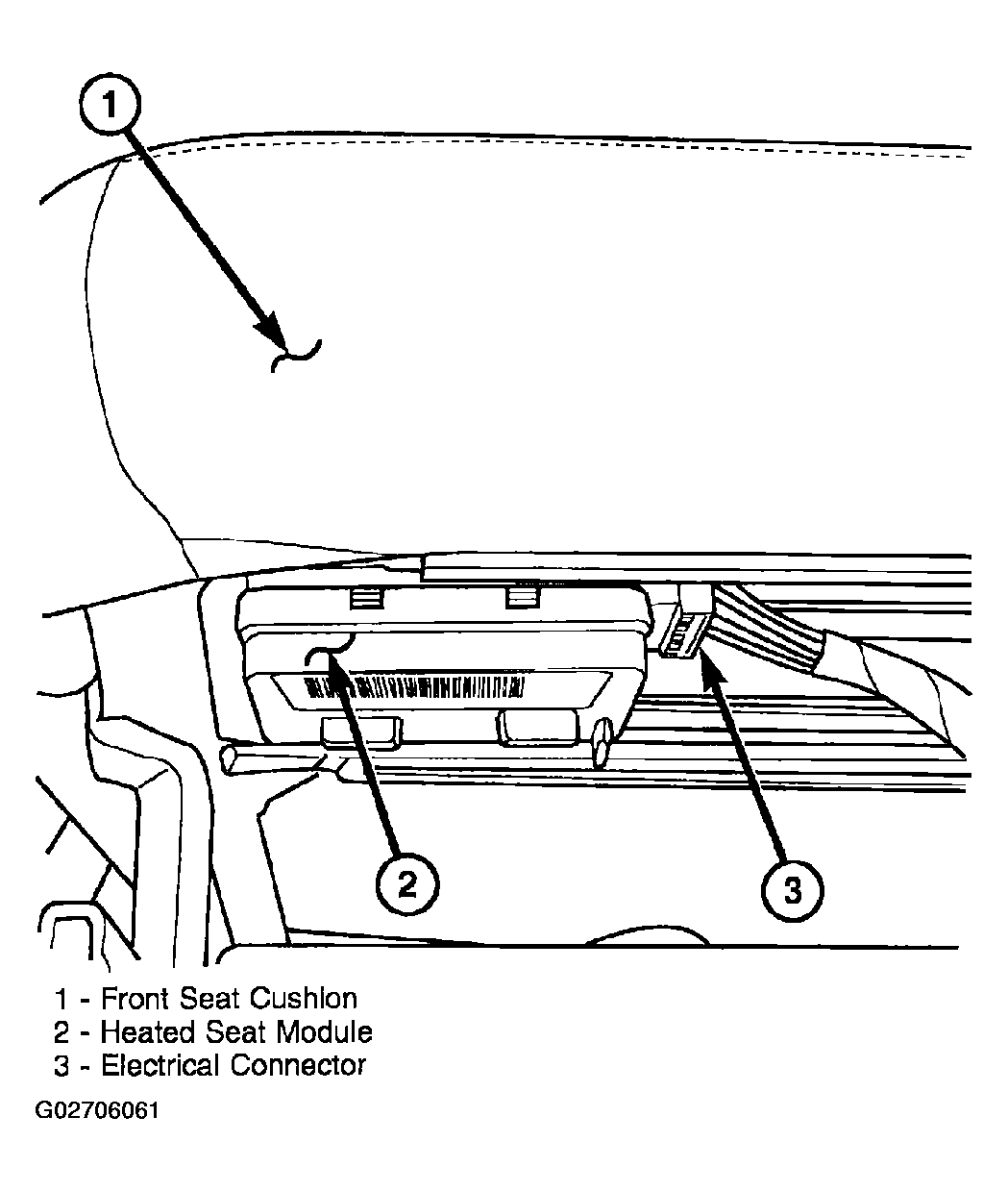

    Fig 1: Locating Heated Seat Module Location
    G02706061Courtesy of DAIMLERCHRYSLER CORP.
