Controller Anti-Lock Brake: Installation
NOTE:
If the CAB is being replaced with a new CAB, it must be reprogrammed with the use of a DRB III.

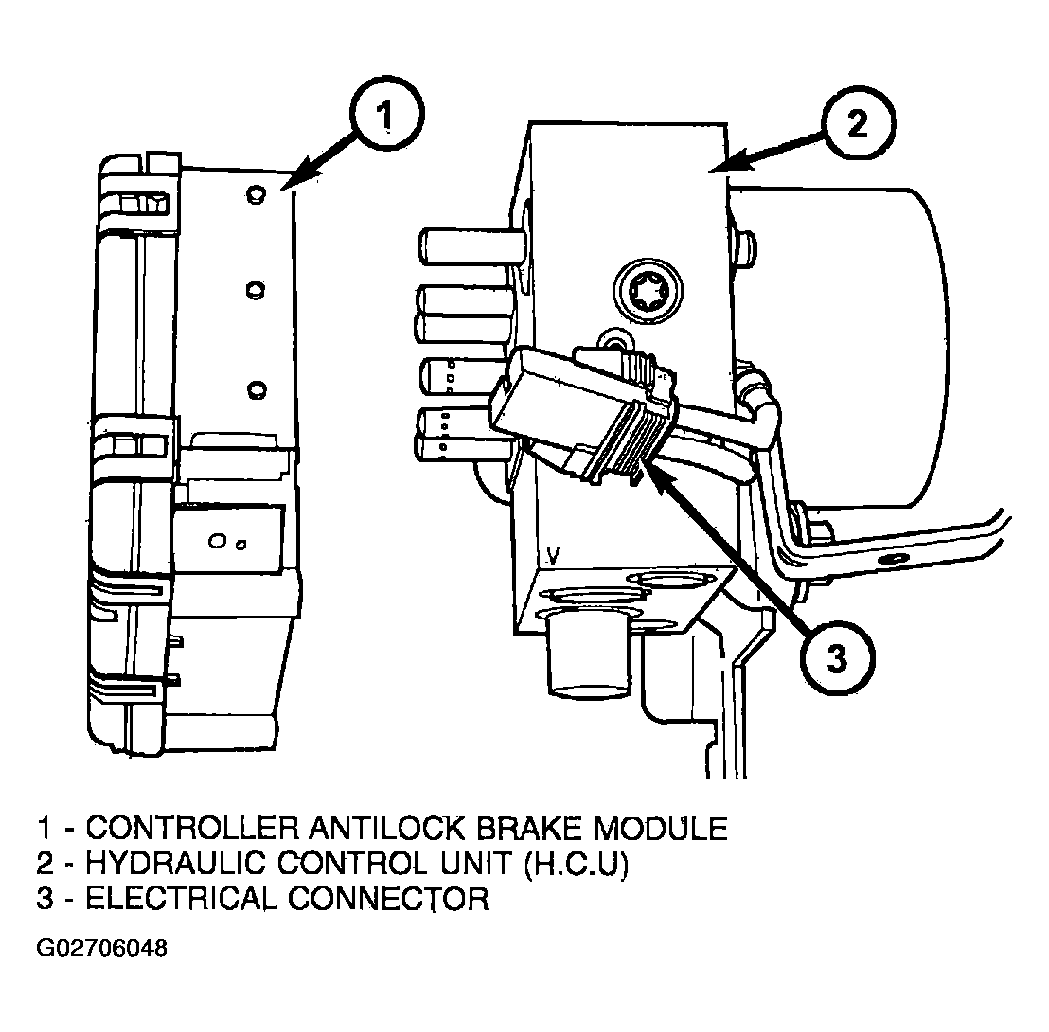

- Install CAB to the HCU (Figure
).
- Install mounting bolts. Tighten to 2 N.m (16 in. lbs.).
- Install the pump electrical connector to the CAB (Figure
).
- Install the wiring harness connector to the CAB and push down on the release to secure the connector.
- Install negative battery cable to the battery.
