Red Brake Warning Indicator Switch Connector End View

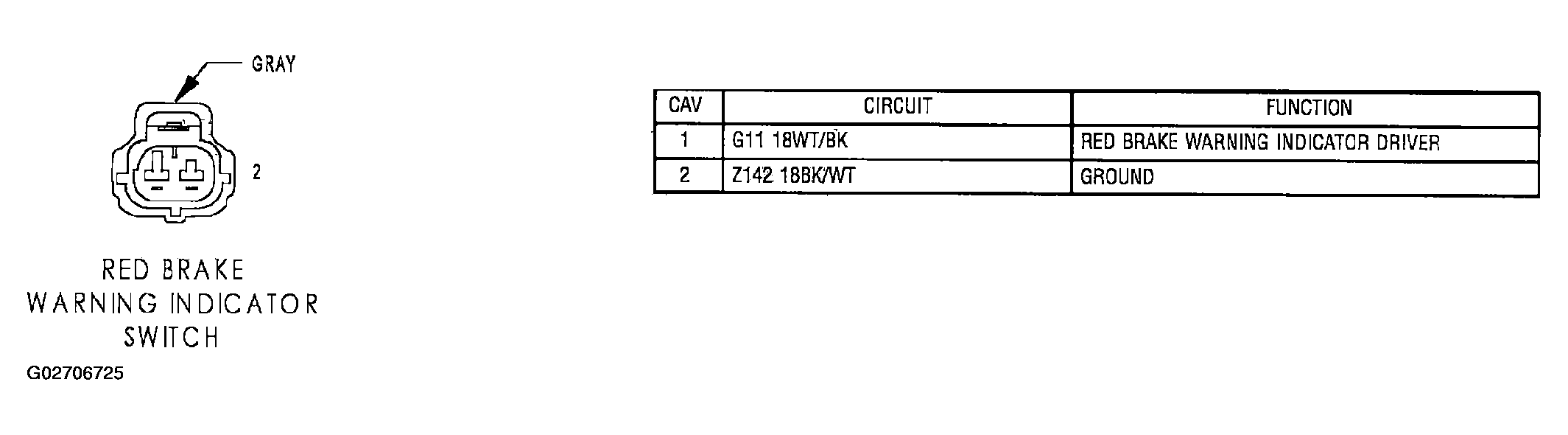

Fig 1: Red Brake Warning Indicator Switch Connector End View

G02706725

Courtesy of DAIMLERCHRYSLER CORP.
