Drag Link: Removal

  1. Raise and support the vehicle.
  2. Remove right wheel and tire assembly.
  3. Remove the cotter pins and nuts at the right steering knuckle and pitman arm (Fig 1).
  4. Remove the drag link from the steering knuckle and pitman arm Puller C-3894-A.
  5. Loosen adjustment sleeve clamp bolts and unscrew the tie rod ends from the adjustment sleeve.

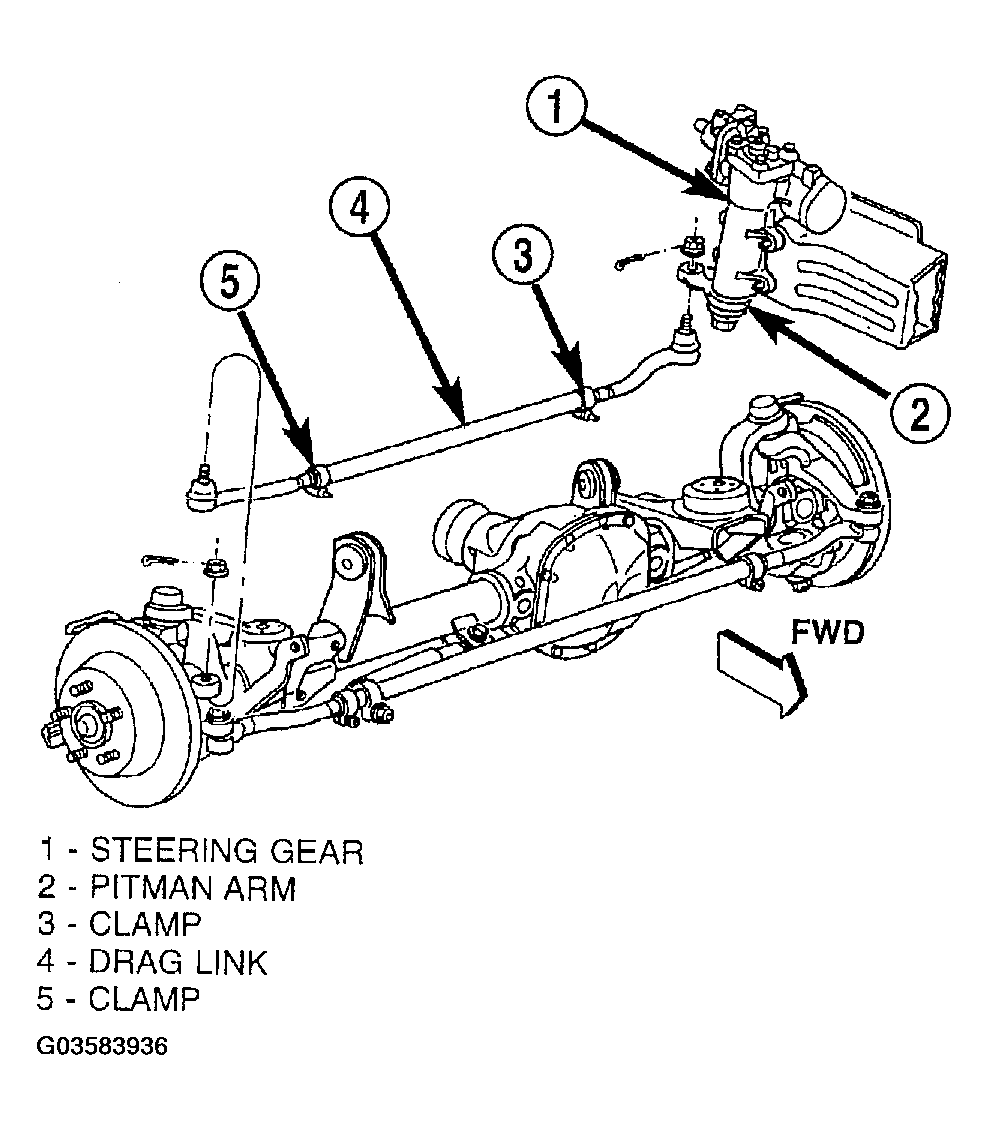

    Fig 1: Drag Link
    G03583936Courtesy of DAIMLERCHRYSLER CORP.
