Engine Controls - Self-Diagnostics
>>
Connector Identification
>>
Transmission Solenoid/TRS Assembly Harness Commentary End View (4.7L)
Transmission Solenoid/TRS Assembly Harness Commentary End View (4.7L)

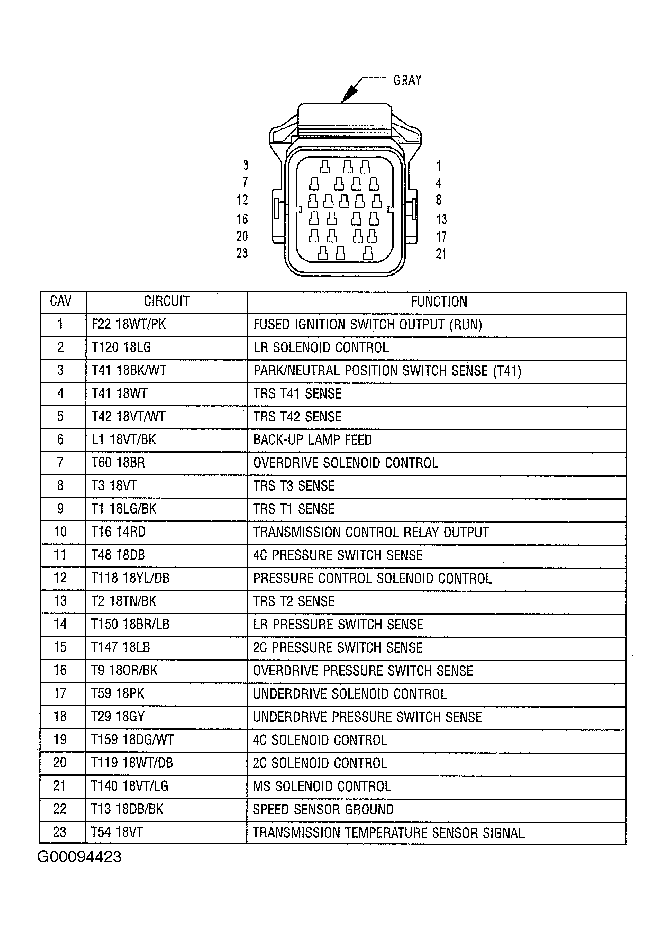

Fig 1: Identifying Transmission Solenoid/TRS Assembly Harness Connector (4.7L)
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
