Trailer Tow Harness Commentary End View

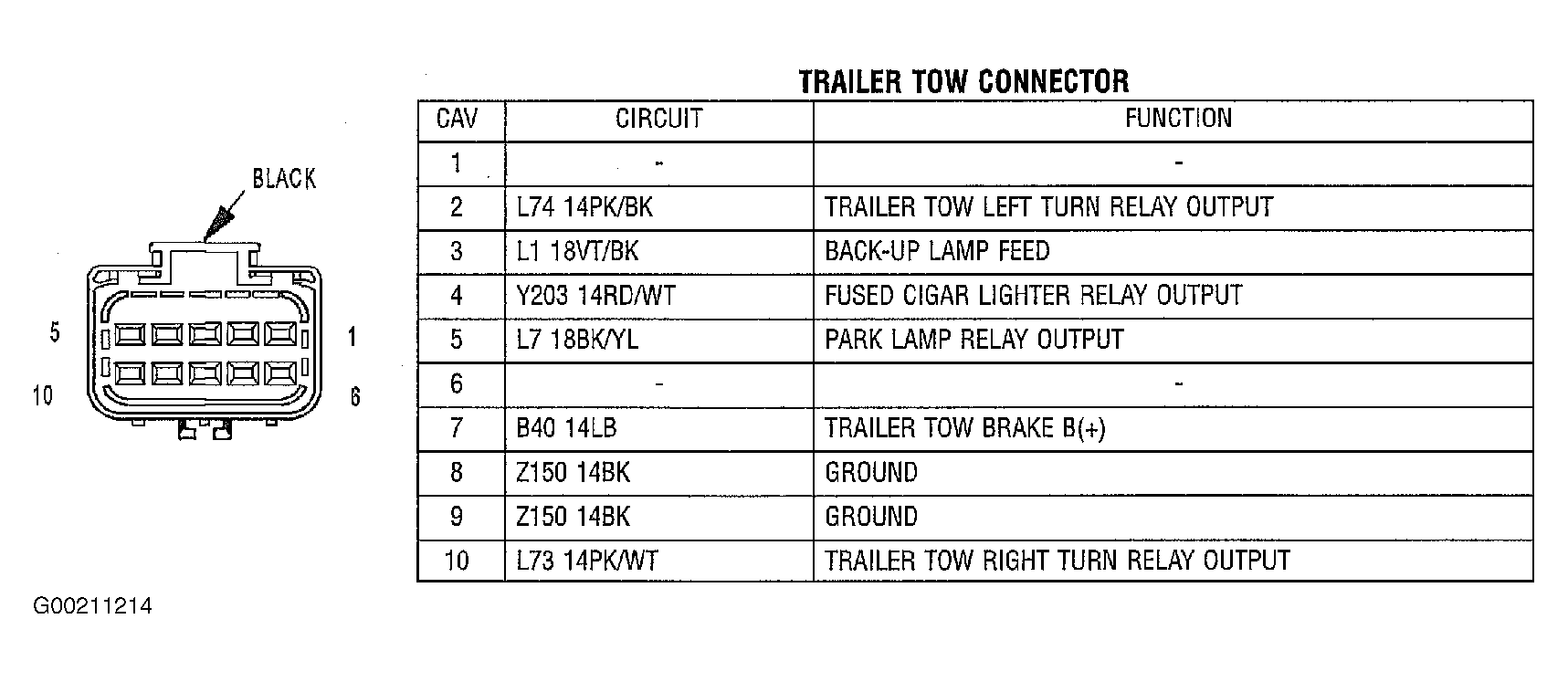

Fig 1: Identifying Trailer Tow Harness Connector

G00211214

Courtesy of CHRYSLER CORP.
