TCM Harness Commentary End View (4.7L)

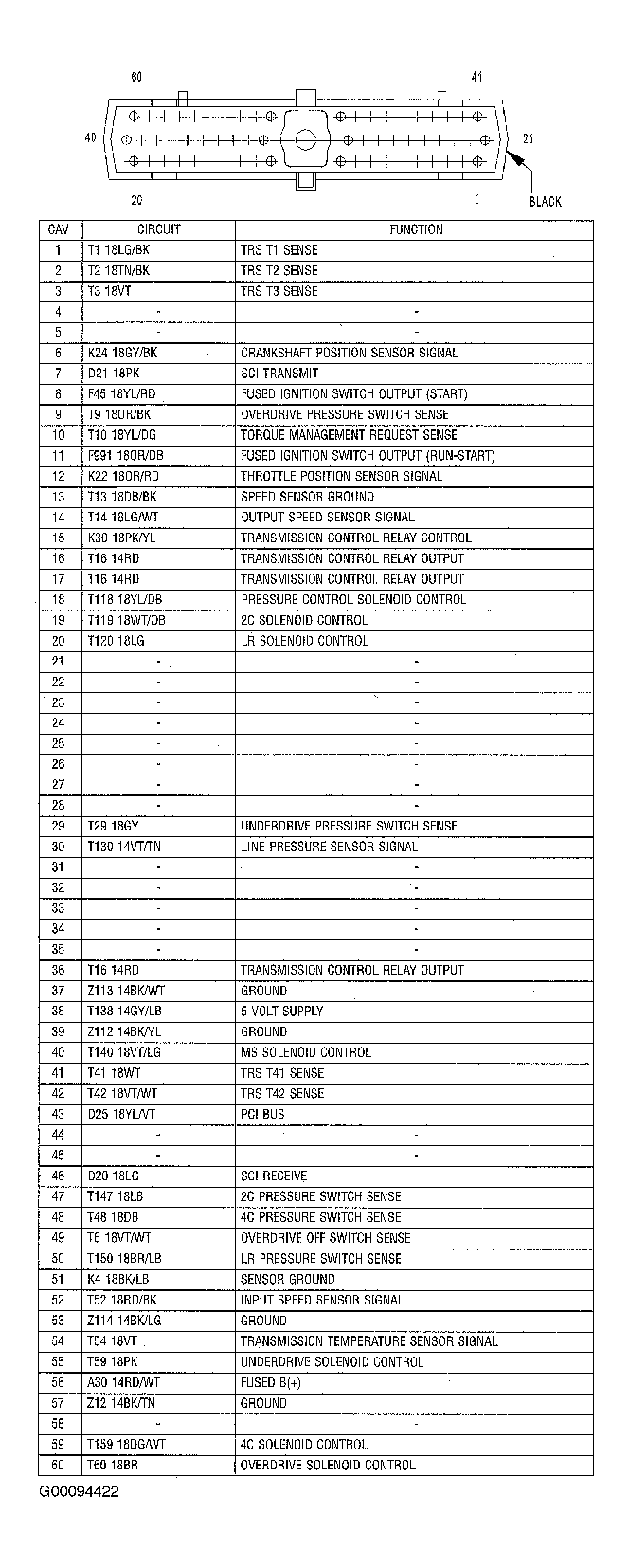

Fig 1: Identifying TCM Harness Connector (4.7L)

G00094422

Courtesy of DAIMLERCHRYSLER CORPORATION
