Engine Controls - Self-Diagnostics
>>
Connector Identification
>>
Power Distribution Center Fuses & Fuse Circuits Identification & Commentary End View
Power Distribution Center Fuses & Fuse Circuits Identification & Commentary End View

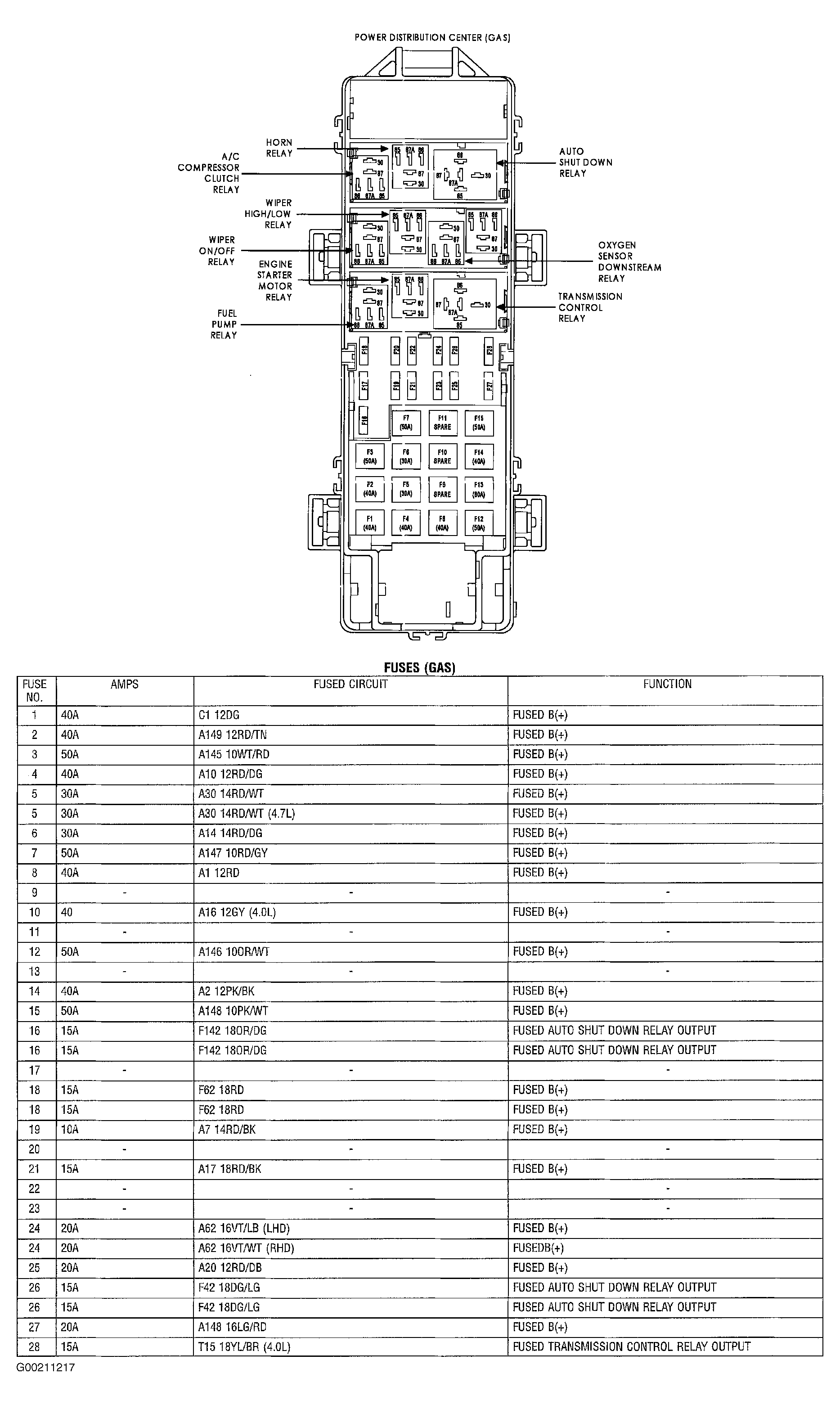

Fig 1: Identifying Power Distribution Center Fuses & Fuse Circuits
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
