Starter Solenoid

This test can only be performed with the starter motor removed from the vehicle.

1. Remove the starter motor from the vehicle. See STARTER MOTOR  under REMOVAL & INSTALLATION.
2. Disconnect the wire from the solenoid field coil terminal.
3. Check for continuity between the solenoid terminal and the solenoid field coil terminal with a continuity tester, see Fig 1 , there should be continuity. If OK, go to next step. If not OK, replace the faulty starter motor assembly.

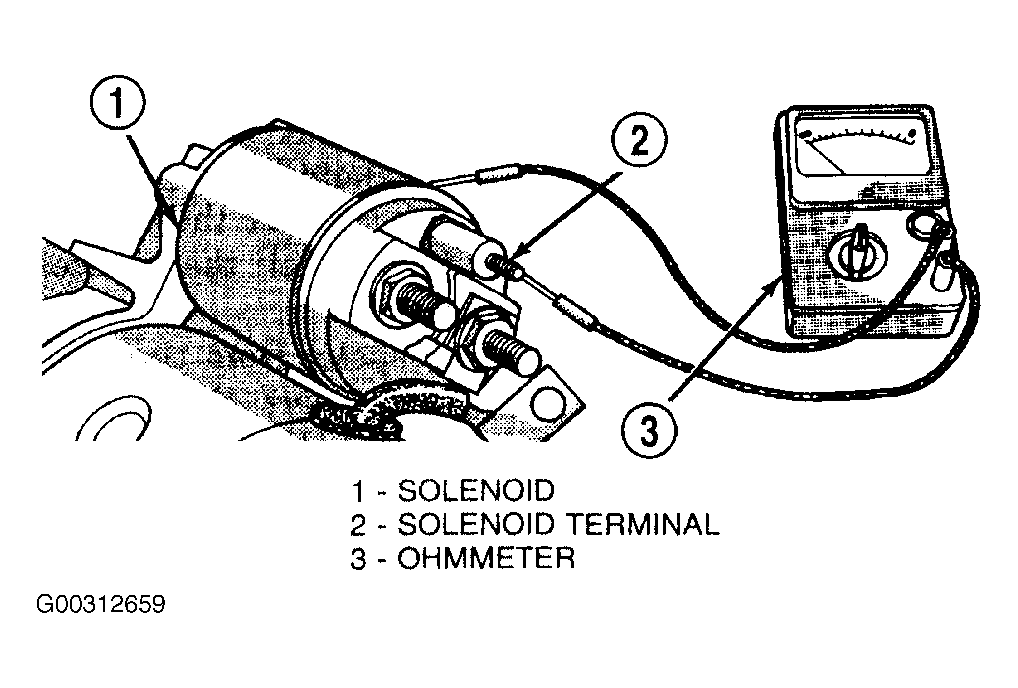

   Fig 1: Continuity Test Between Solenoid Terminal and Field Coil Terminal

   Courtesy of DAIMLERCHRYSLER CORP.
4. Check for continuity between the solenoid terminal and the solenoid case. See Fig 2 . There should be continuity. If not OK, replace the faulty starter motor assembly.
   Fig 2: Continuity Test Between Solenoid Terminal

   Courtesy of CHRYSLER CORP.
