Home >> Jeep >> 2003 >> Grand Cherokee Overland >> Repair and Diagnosis >> Electrical >> Body Electrical >> Connector End Views >> Connector End View >> Junction Block Body Control Module - Black 26 Way Connector End View

Junction Block Body Control Module - Black 26 Way Connector End View

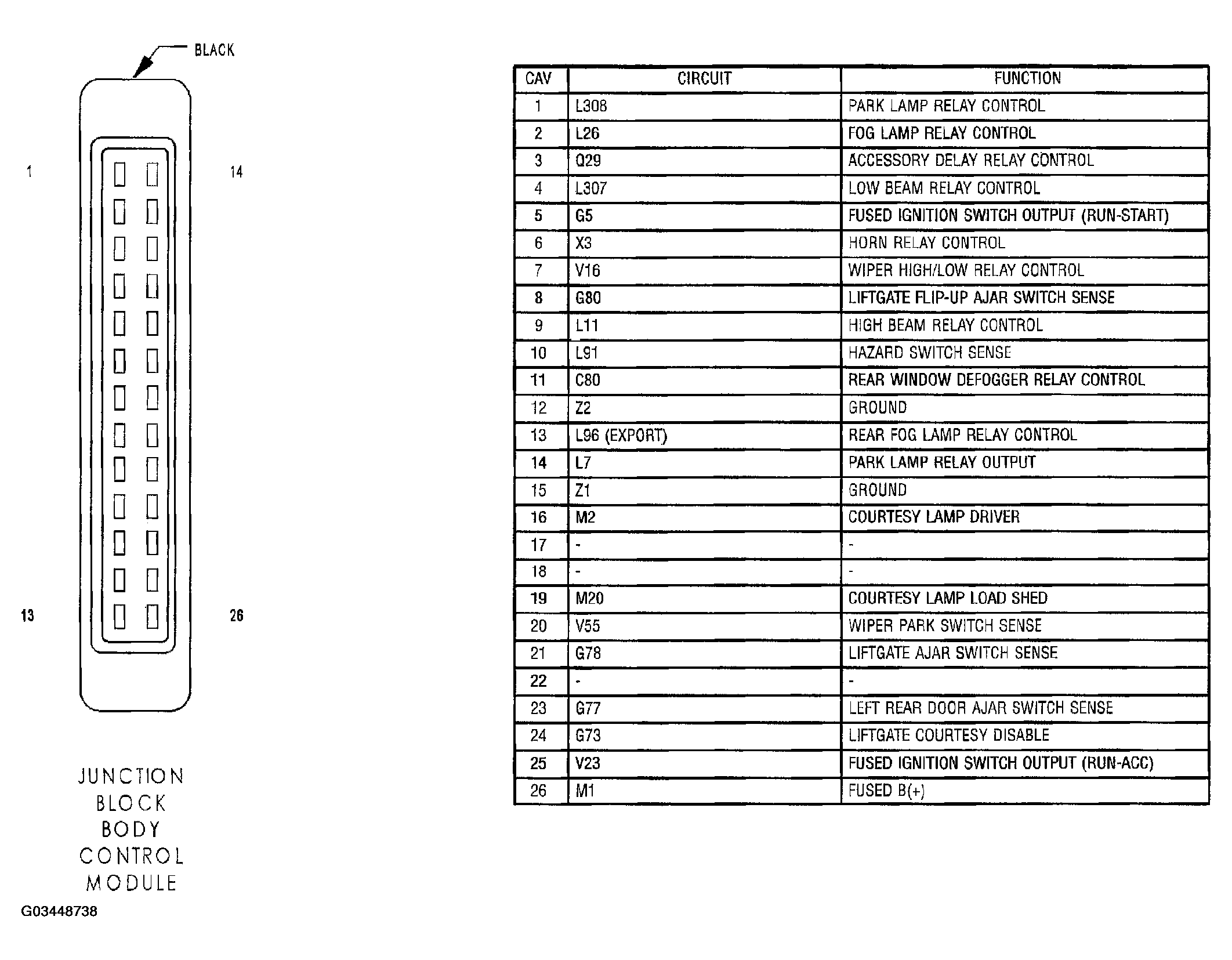

Fig 1: Junction Block Body Control Module Connector End View

G03448738

Courtesy of DAIMLERCHRYSLER CORP.
