Driver Side
Driver Side

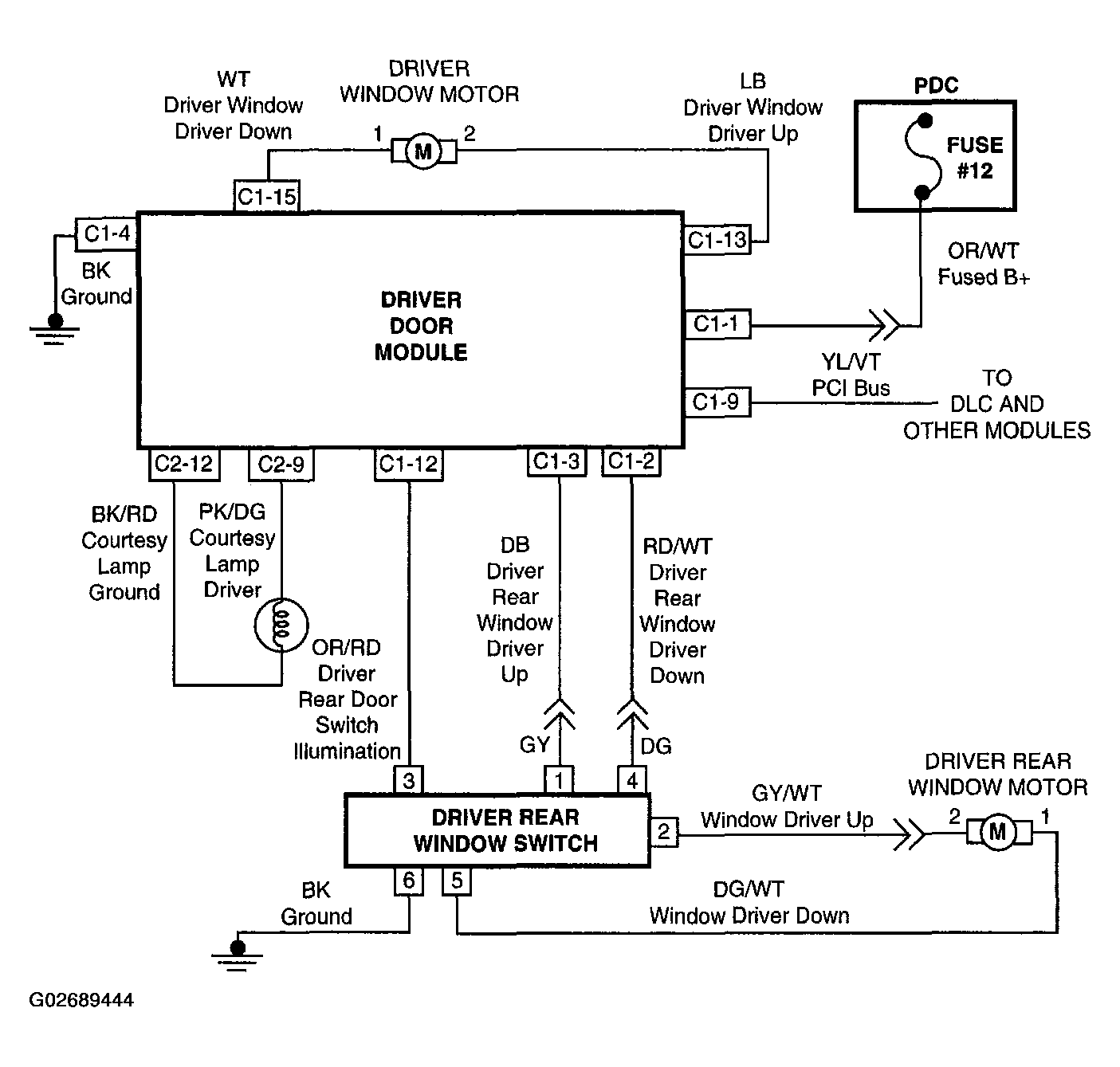

Fig 1: Identifying Power Windows Driver Side Schematic Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
