Remote Radio Controls

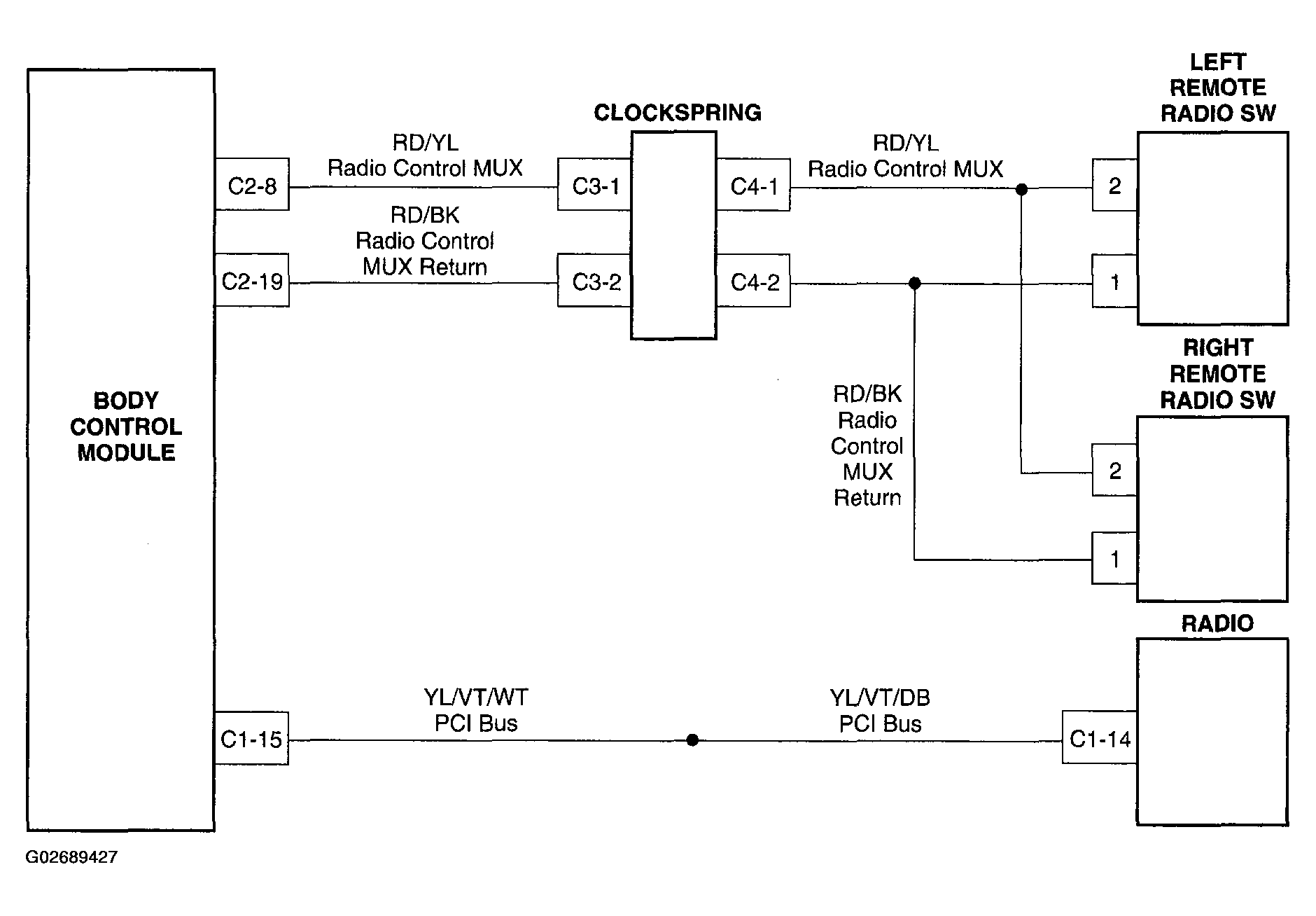

Fig 1: Identifying Remote Radio Controls Schematic Diagram

G02689427

Courtesy of DAIMLERCHRYSLER CORP.
