Base Audio System
Base Audio System

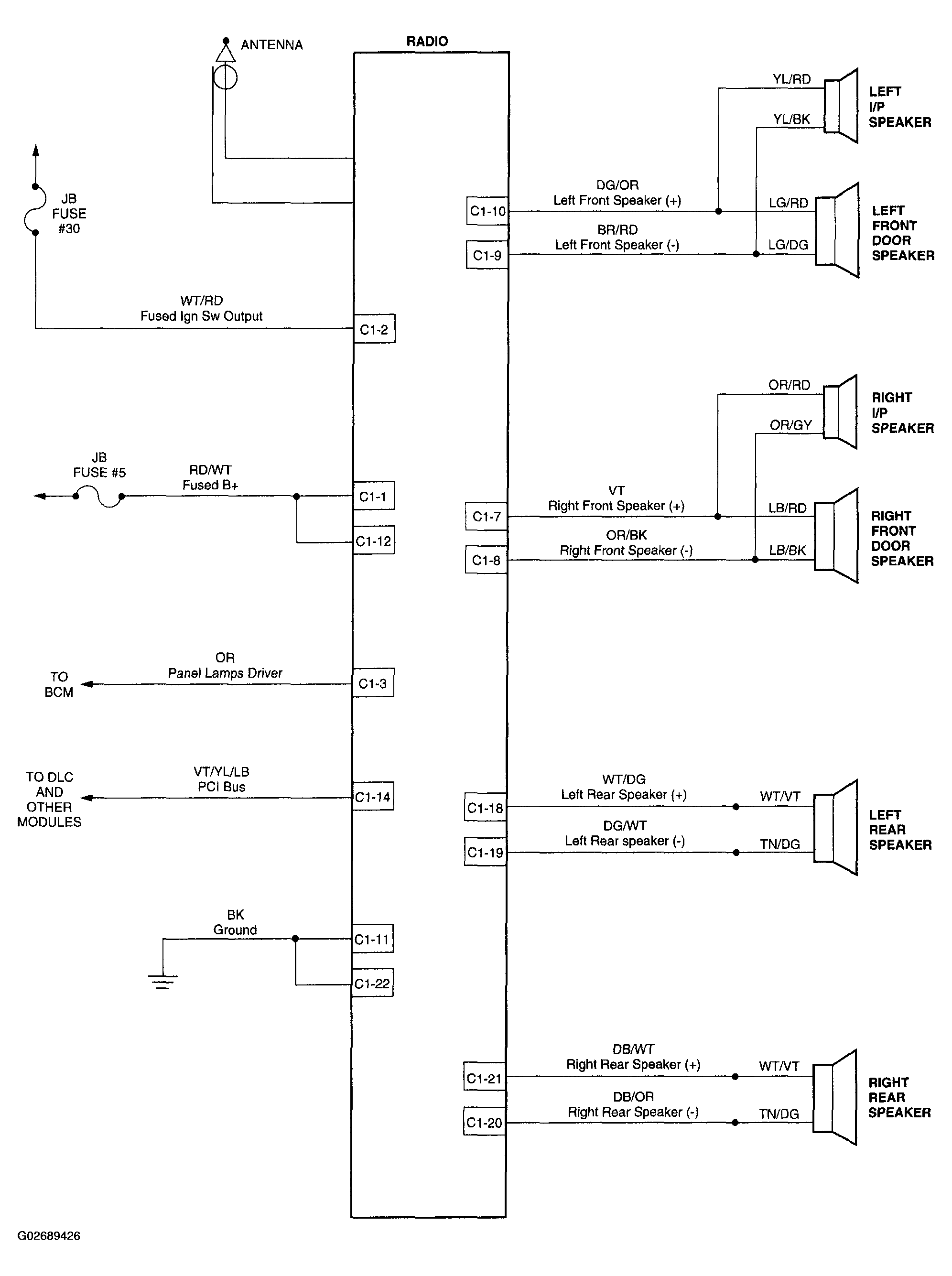

Fig 1: Identifying Base Audio System Schematic Diagram
Courtesy of DAIMLERCHRYSLER CORP.
