Front Wipers

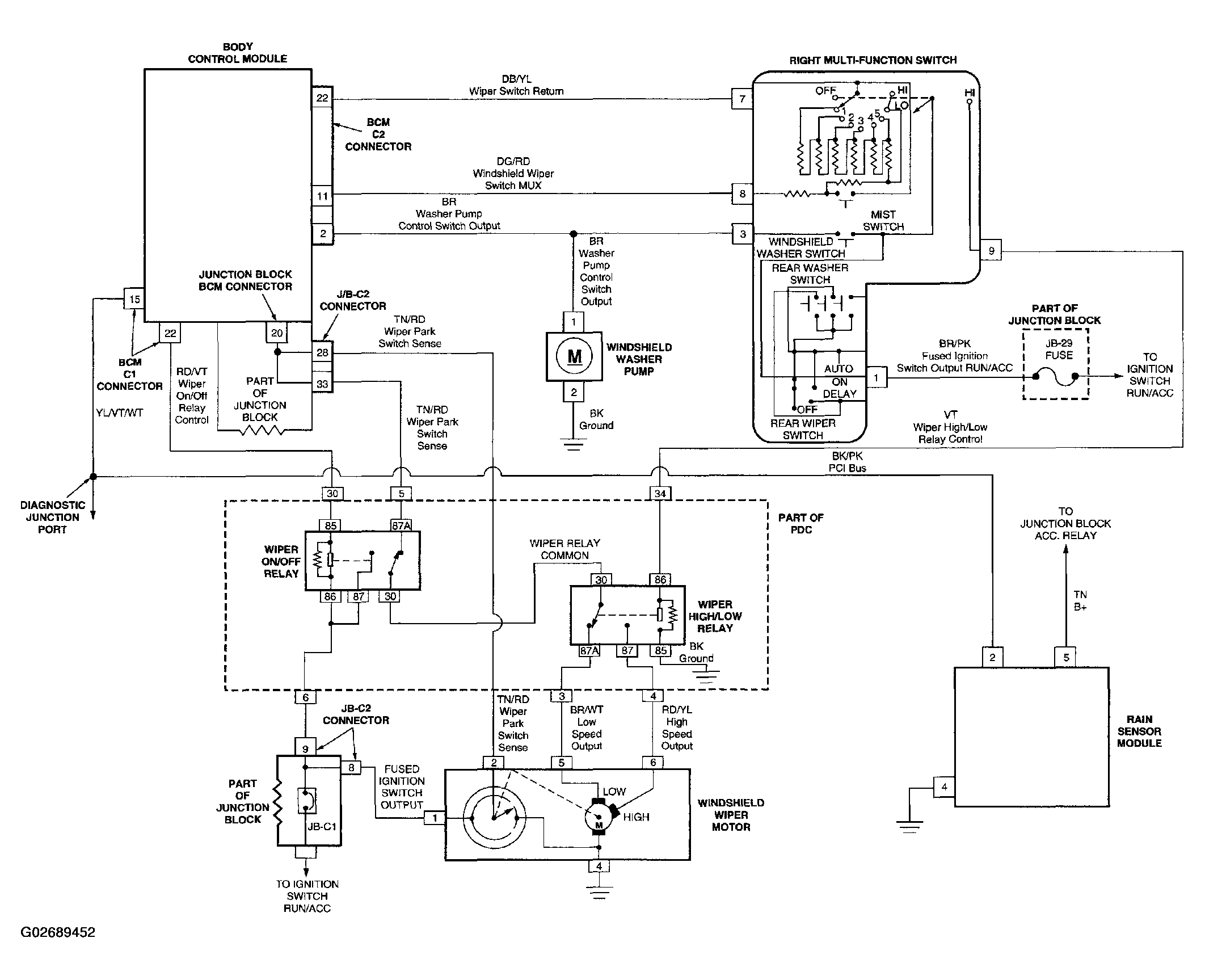

Fig 1: Identifying Front Windshield Wipers Schematic Diagram
G02689452Courtesy of DAIMLERCHRYSLER CORP.
