Driver Mirror
Driver Mirror

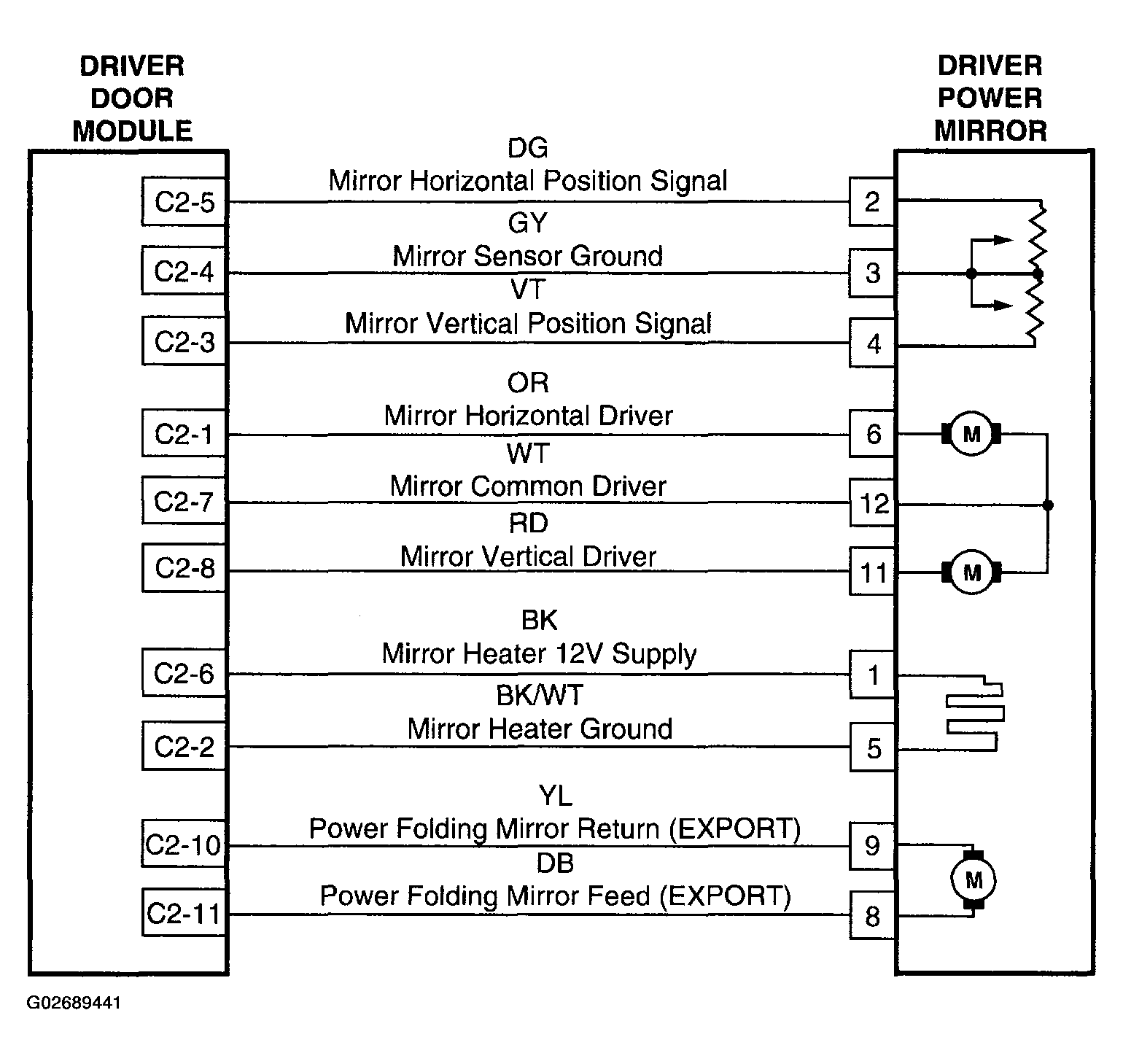

Fig 1: Identifying Driver Mirror Schematic Diagram
Courtesy of DAIMLERCHRYSLER CORP.
